Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")
Remove the console rear complete & console front complete assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")
Remove the front pillar trim.
(Refer to "FRONT PILLAR TRIM ")
Remove the cowl side trim.
(Refer to "COWL SIDE TRIM ")
Remove the instrument cluster.
(Refer to "INSTRUMENT CLUSTER ")
Remove the steering column shroud panel.
(Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")
Remove the AVN head unit.
(Refer to "AVN HEAD UNIT ")
Remove the glove box housing.
(Refer to "GLOVE BOX HOUSING ")
Disconnect the steering column connectors.
(Refer to "STEERING COLUMN AND SHAFT ")
Down the steering column after loosening the mounting bolts.
(Refer to "STEERING COLUMN AND SHAFT ")

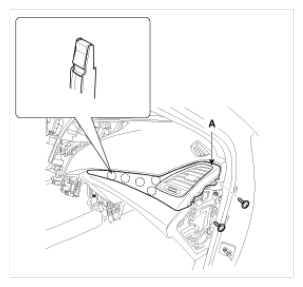

After loosening the mounting screws, then remove the crash pad garnish [RH] (A).

Fig 1: Identifying Crash Pad Garnish (RH) With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Fig 2: Identifying Crash Pad Garnish Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the crash pad main lower panel (A).

Fig 3: Identifying Crash Pad Main Lower Panel With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

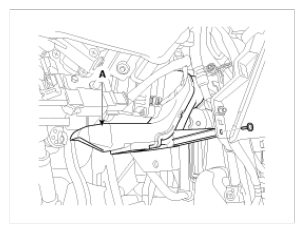

After loosening the mounting screw, then remove the air duct assembly (A).

Fig 4: Identifying Air Duct Assembly With Mounting Screw
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the center speaker grille (A).

Fig 5: Identifying Center Speaker Grille
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the center speaker assembly (A).

Fig 6: Identifying Center Speaker Assembly With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the center speaker connectors (A).

Fig 7: Identifying Center Speaker Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the start/stop button connector (A).

Fig 8: Identifying Start/Stop Button Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the cub is assembly (A).
Disconnect the connector (B).

Fig 9: Identifying Cub Assembly And Connector
Courtesy of HYUNDAI MOTOR AMERICA

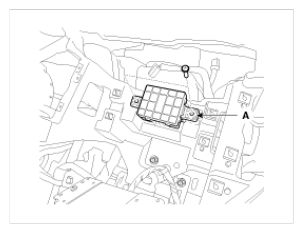

After loosening the mounting screws, then remove the joint block (A).

Fig 10: Identifying Joint Block
Courtesy of HYUNDAI MOTOR AMERICA

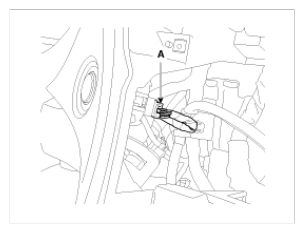

Disconnect the passenger's airbag connector (A).
Loosen the mounting bolts.

Fig 11: Identifying Passenger's Airbag Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the photo sensor (A).
Disconnect the photo sensor connector (B).

Fig 12: Identifying Photo Sensor And Connector
Courtesy of HYUNDAI MOTOR AMERICA

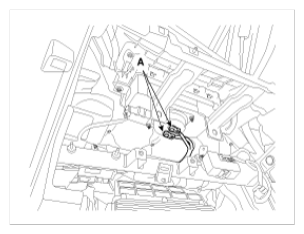

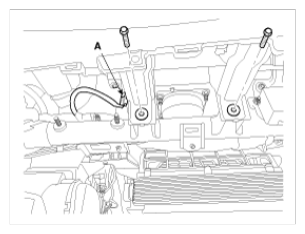

Disconnect the passenger's airbag connectors (A).

Fig 13: Identifying Passenger's Airbag Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the speaker [LH, RH] connectors (A).

Fig 14: Identifying Speaker Connectors (LH, RH)
Courtesy of HYUNDAI MOTOR AMERICA

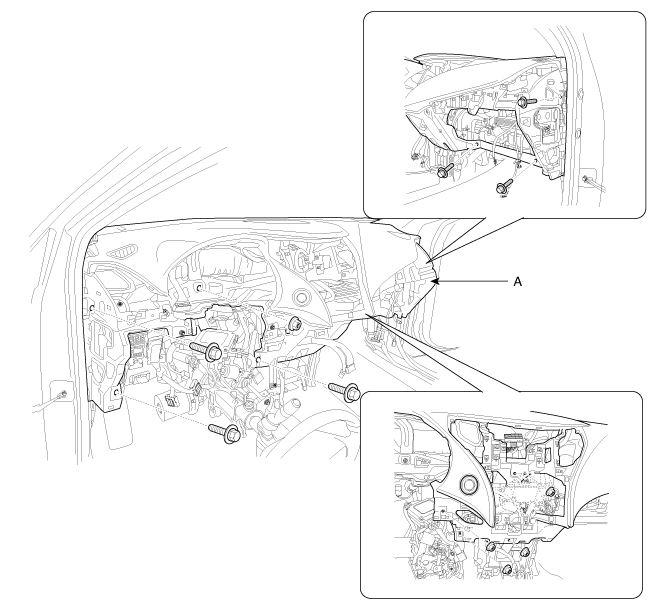

After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).

Fig 15: Identifying Main Crash Pad Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
