Repair Procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

1. Lumbar support switch

Fig 1: Identifying Lumbar Support Switch Connector And Screws

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Identifying Lumbar Support Switch Connector Terminals

Courtesy of HYUNDAI MOTOR AMERICA

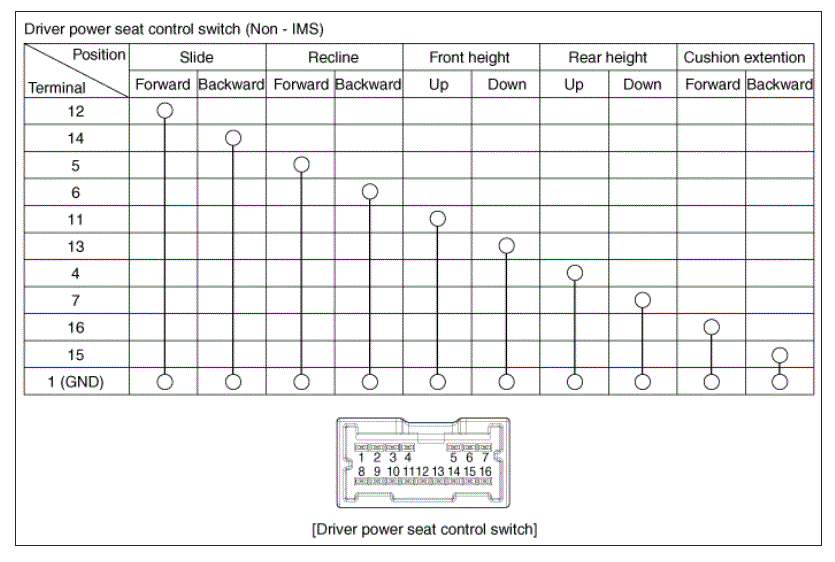

Fig 3: Driver Power Seat Control Switch Continuity Reference Chart

Courtesy of HYUNDAI MOTOR AMERICA

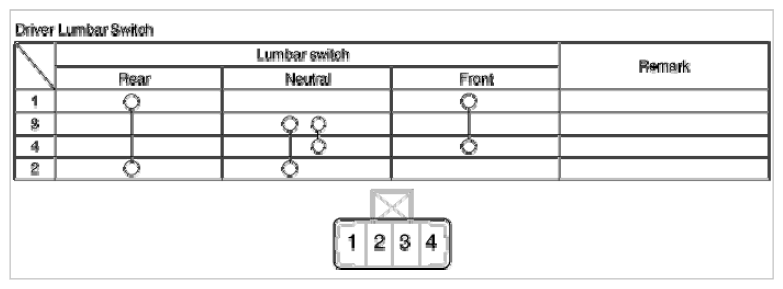

Fig 4: Driver Lumbar Switch Continuity Reference Chart

Courtesy of HYUNDAI MOTOR AMERICA

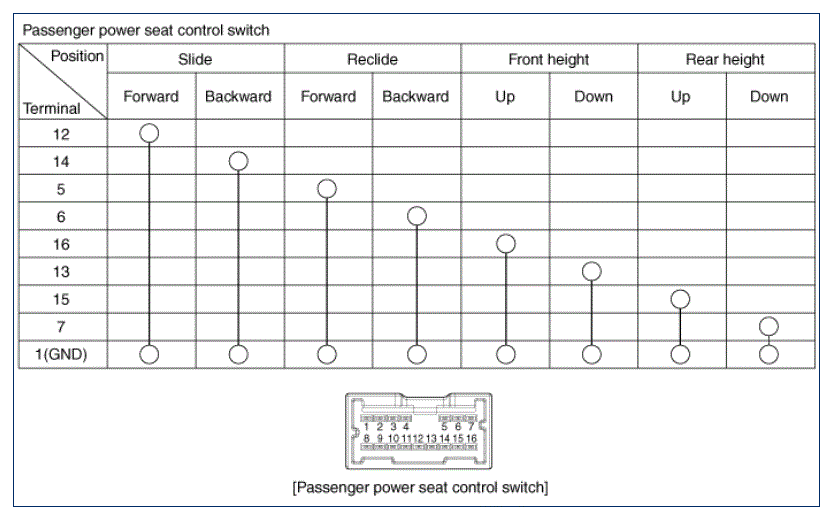

Fig 5: Passenger Power Seat Control Switch Continuity Reference Chart

Courtesy of HYUNDAI MOTOR AMERICA
