Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module mounting bolts (A).

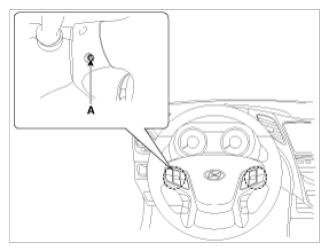

    Fig 1: Identifying Driver Airbag Module Mounting Bolts
    G08810303Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the wiring fixing clip (C) and disconnect the horn connector (A).

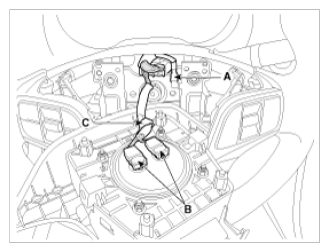

    Fig 2: Identifying Horn Connector, Driver Airbag Module Connector And Wiring Fixing Clip
    G08810304Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the connector locking pin, then disconnect the driver airbag module connector (B).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel and steering wheel column shroud.

    (Refer to "STEERING COLUMN AND SHAFT ")

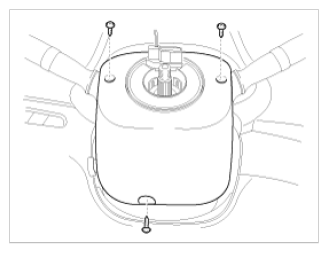

    Fig 3: Removing Steering Wheel And Steering Wheel Column Shroud
    G08810305Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the clock spring and horn connector, then remove the clock spring.

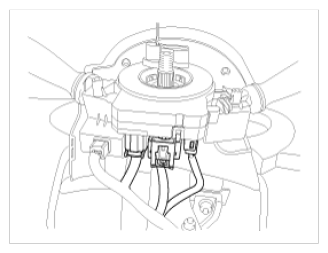

    Fig 4: Identifying Clock Spring And Horn Connector
    G08810306Courtesy of HYUNDAI MOTOR AMERICA
