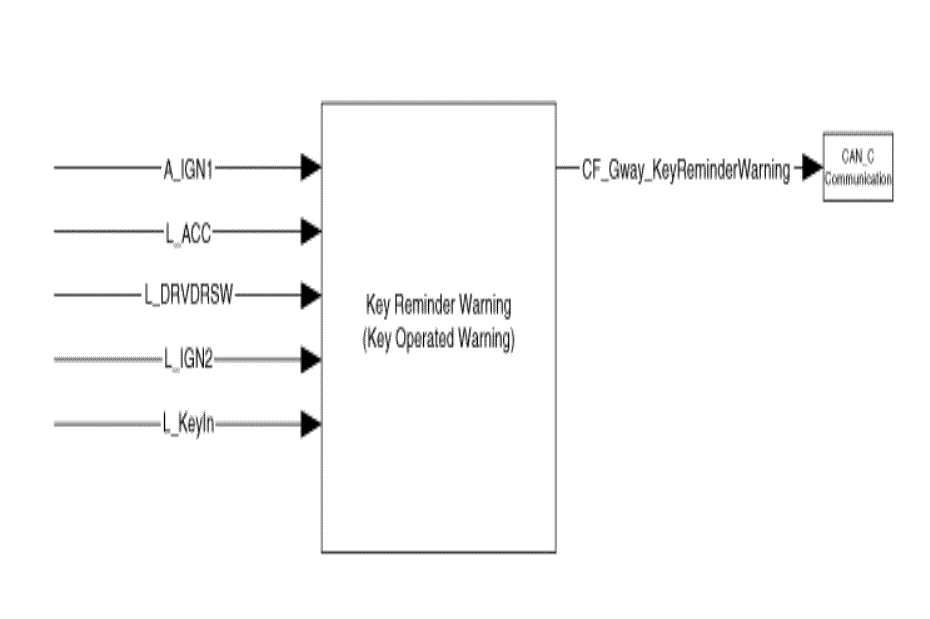

Key Reminder Warning (Key Operated Warning)
If driver opens the driver side door and go away from the car during key is inserted or ACC state, a sound warning reminds a driver that key has to be taken off or ACC state has to be changed to Off state.
| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | Logic | L_ACC | Accessory Signal |
| L_DRVDRSW | Driver Door Switch status | ||
| L_IGN2 | Ignition 2 Signal | ||
| L_KeyIn | Key In signal | ||
| Analog | A_IGN1 | Ignition 1 Signal | |
| Output | CAN_C Communication | CF_Gway_KeyReminderWarning | Internal Warning Buzzer command for Key Reminder Warning |
