Smart key (SMK) Warning

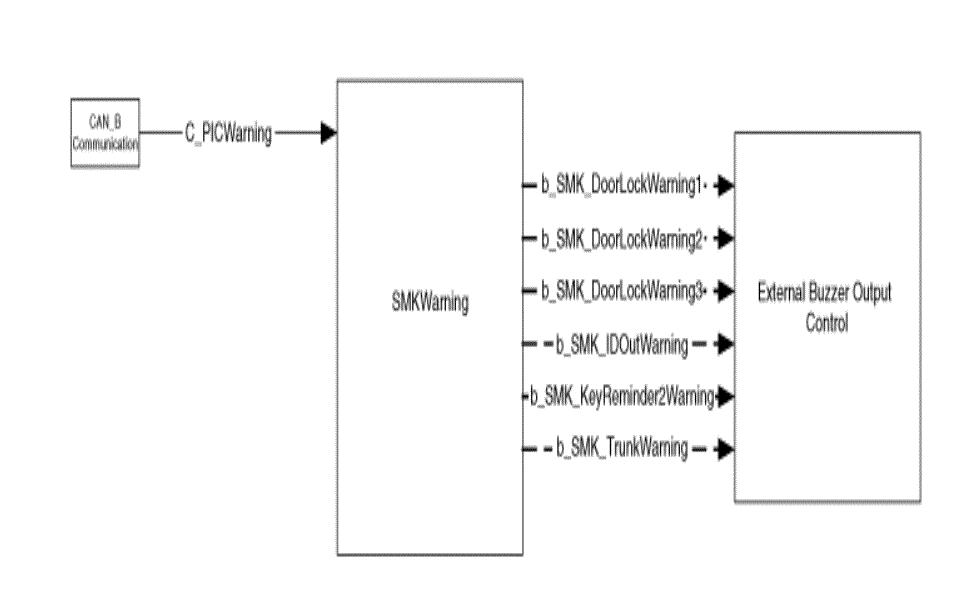

SMK System Warnings conditions of activation are controlled by the SMK unit. When a condition is satisfied, SMK unit sends corresponding warning request to IPM and cluster by CAN, IPM only operates the external buzzer. Internal Warning Buzzer or Warning Indicator are operated by the Cluster. (refer to the SMK warning specification.)
| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | CAN_B Communication | C_PICWarning | SMK Warning Command for external buzzer |
| Output | Internal | b_SMK_DoorLockWarning1 | Door lock warning 1 |
| b_SMK_DoorLockWarning2 | Door lock warning 2 | ||
| b_SMK_DoorLockWarning3 | Door lock warning 3 | ||
| b_SMK_IDOutWarning | ID Out Warning | ||
| b_SMK_KeyReminder2Warning | Key reminder 2 warning | ||
| b_SMK_TrunkWarning | Trunk warning (Trunk closed with Fob inside) | ||
