Components and Components Location: Components

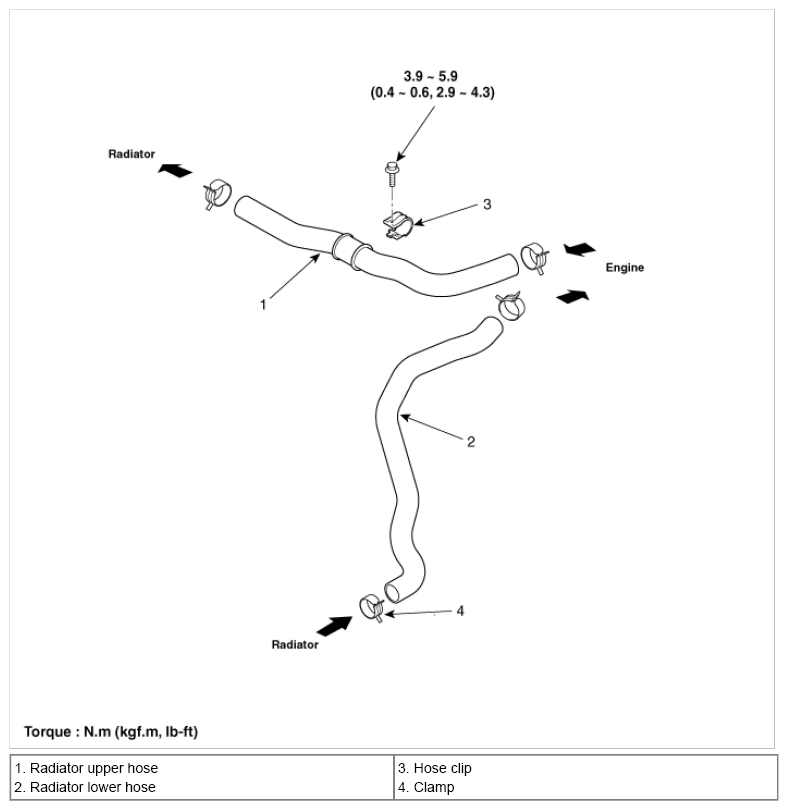

Fig 1: Radiator Hose (Upper And Lower), Hose Clip, Clamp With Torque Specifications
G08809340Courtesy of HYUNDAI MOTOR AMERICA
