Variant coding

  1. Connect GDS to Data Link Connector. (DLC).
  2. IG "ON", and then select the model, system (ESP (ESC))
  3. Click the Vehicle S/W Management button. (Fig 1)
  4. Using GDS, Perform Variant Coding. (Fig 2)
  5. IG "OFF" and wait for about 10 seconds, and then IG "ON".
  6. IG "OFF" and wait for about 10 seconds again, and then, IG "ON.
  7. Go to "COMPONENT INSPECTION " procedure.
    Fig 1: Display - Variant Coding Screen (1 Of 2)
    G09903276Courtesy of HYUNDAI MOTOR AMERICA

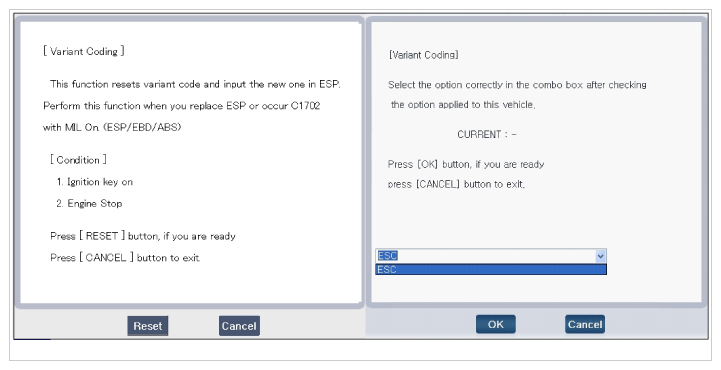

    Fig 2: Display - Variant Coding Screen (2 Of 2)
    G09903277Courtesy of HYUNDAI MOTOR AMERICA
