Components and Components Location: Components

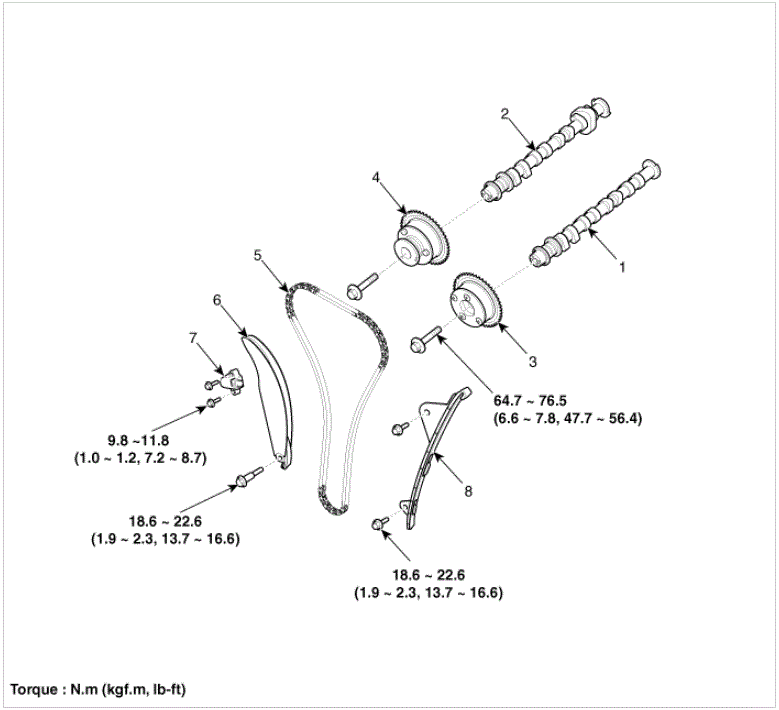

Fig 1: Timing Chain Replacement Components With Torque Specifications
G00554165Courtesy of HYUNDAI MOTOR AMERICA
1. Intake camshaft 5. Timing chain
2. Exhaust camshaft 6. Timing chain tensioner arm
3. Intake CVVT assembly 7. Timing chain tensioner
4. Exhaust CVVT assembly 8. Timing chain guide
