Circuit Diagram: (A/T)

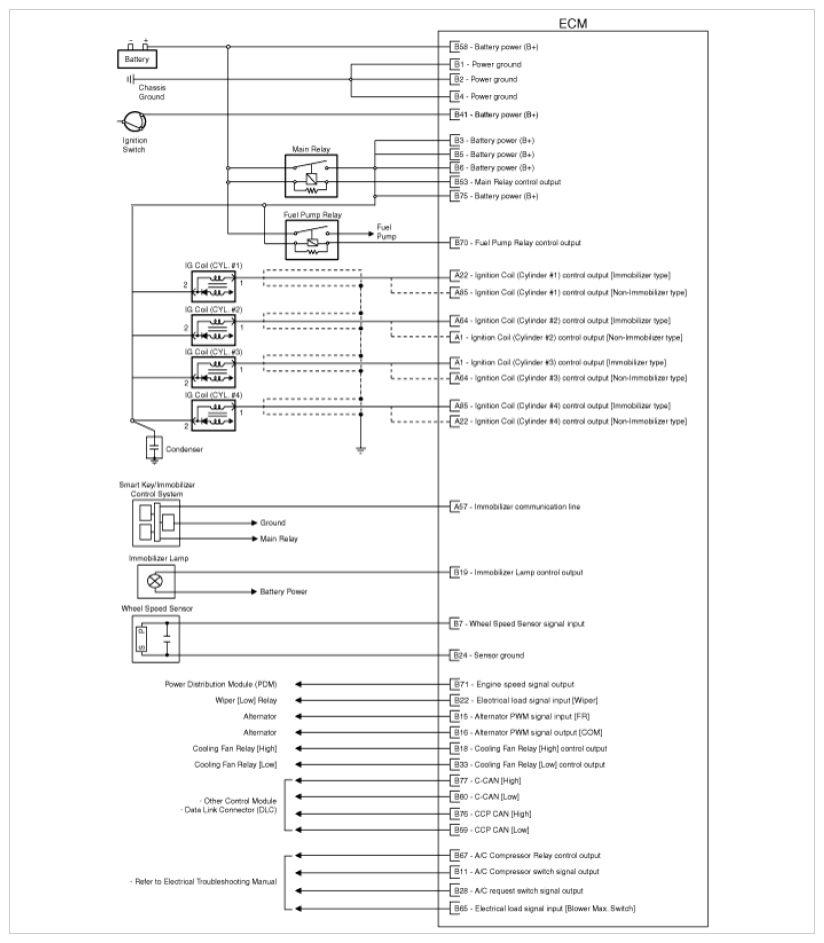

Fig 1: ECM - Circuit Diagram - A/T (1 Of 4)
G09885870Courtesy of HYUNDAI MOTOR AMERICA

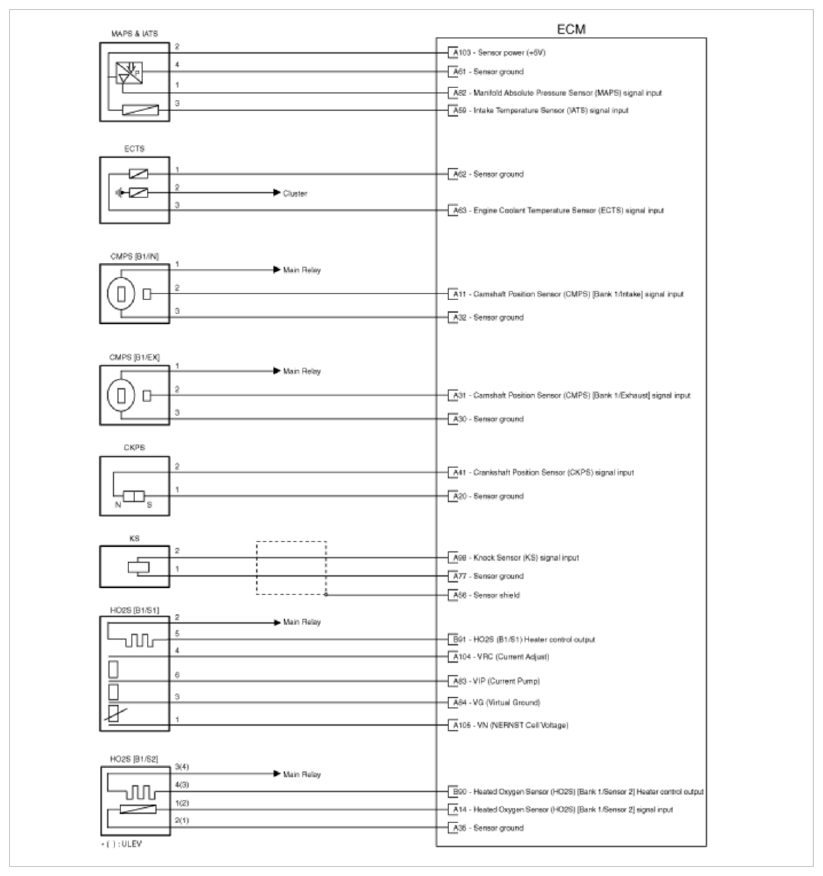

Fig 2: ECM - Circuit Diagram - A/T (2 Of 4)
G09885871Courtesy of HYUNDAI MOTOR AMERICA

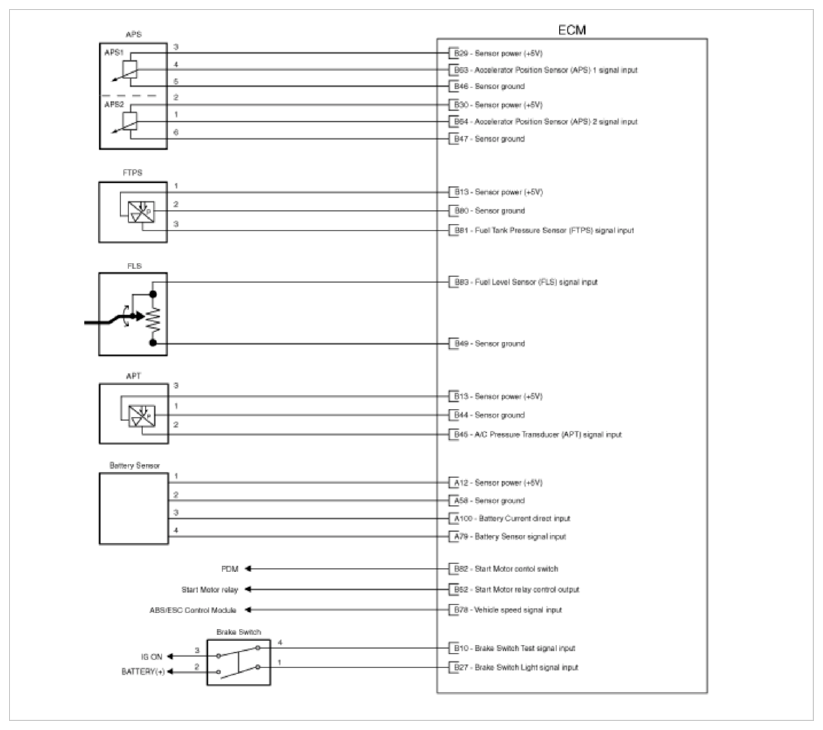

Fig 3: ECM - Circuit Diagram - A/T (3 Of 4)
G09885872Courtesy of HYUNDAI MOTOR AMERICA

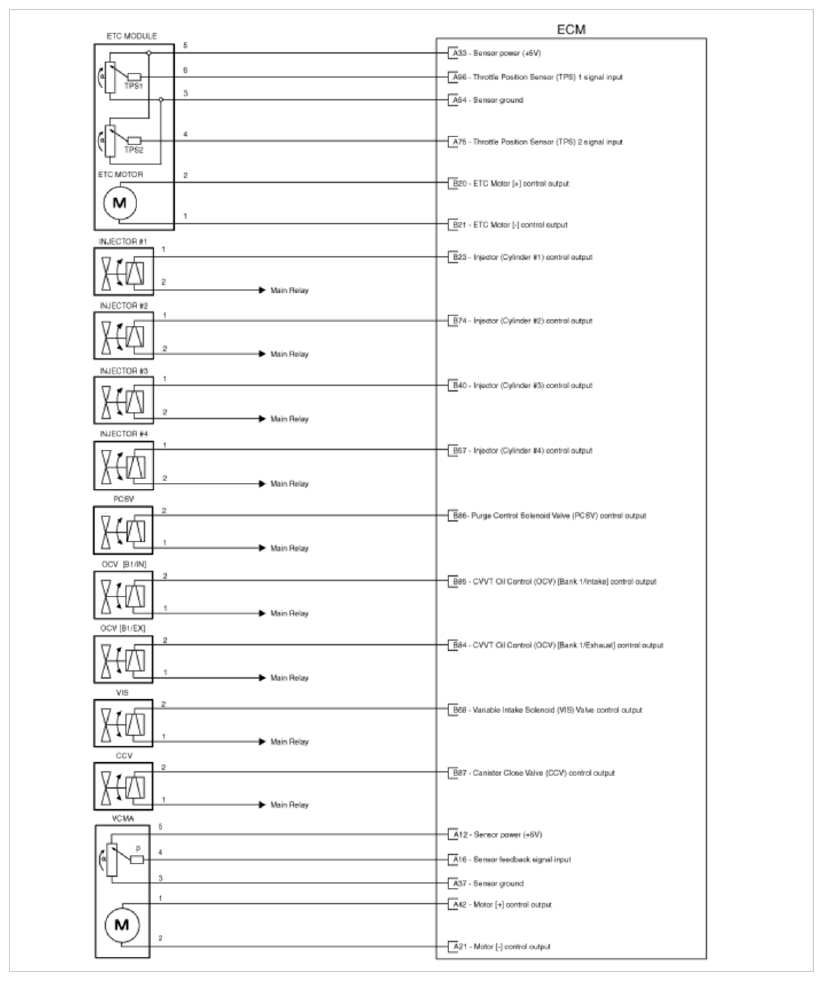

Fig 4: ECM - Circuit Diagram - A/T (4 Of 4)
G09885873Courtesy of HYUNDAI MOTOR AMERICA
