Circuit Diagram: (M/T)

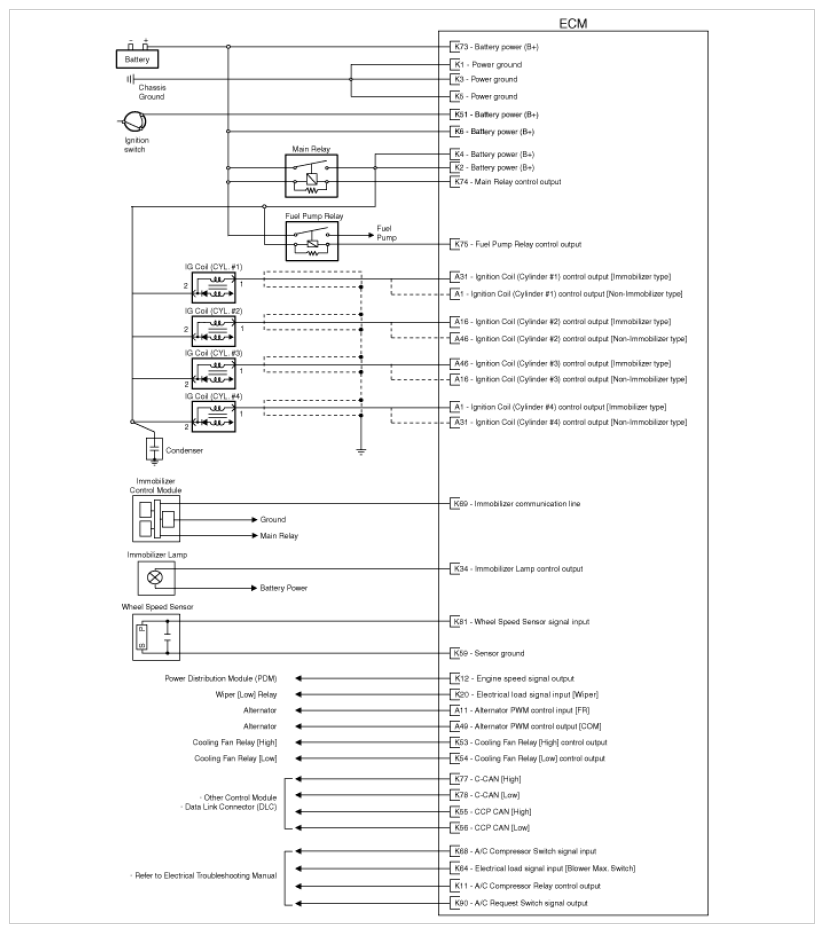

Fig 1: ECM - Circuit Diagram - M/T (1 Of 4)
G09885866Courtesy of HYUNDAI MOTOR AMERICA

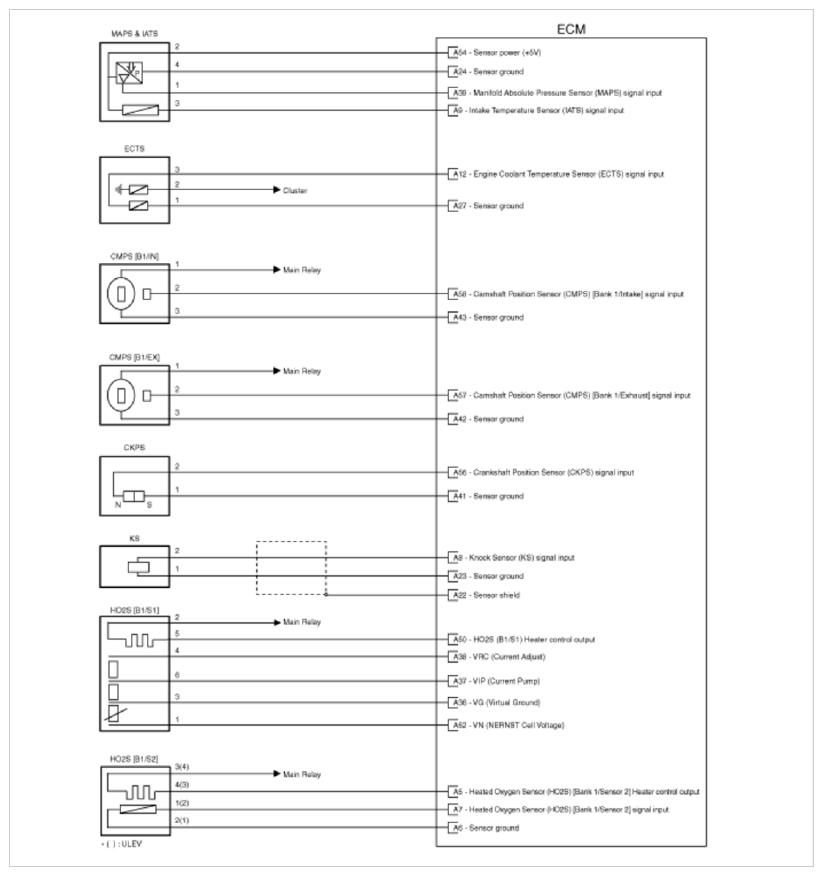

Fig 2: ECM - Circuit Diagram - M/T (2 Of 4)
G09885867Courtesy of HYUNDAI MOTOR AMERICA

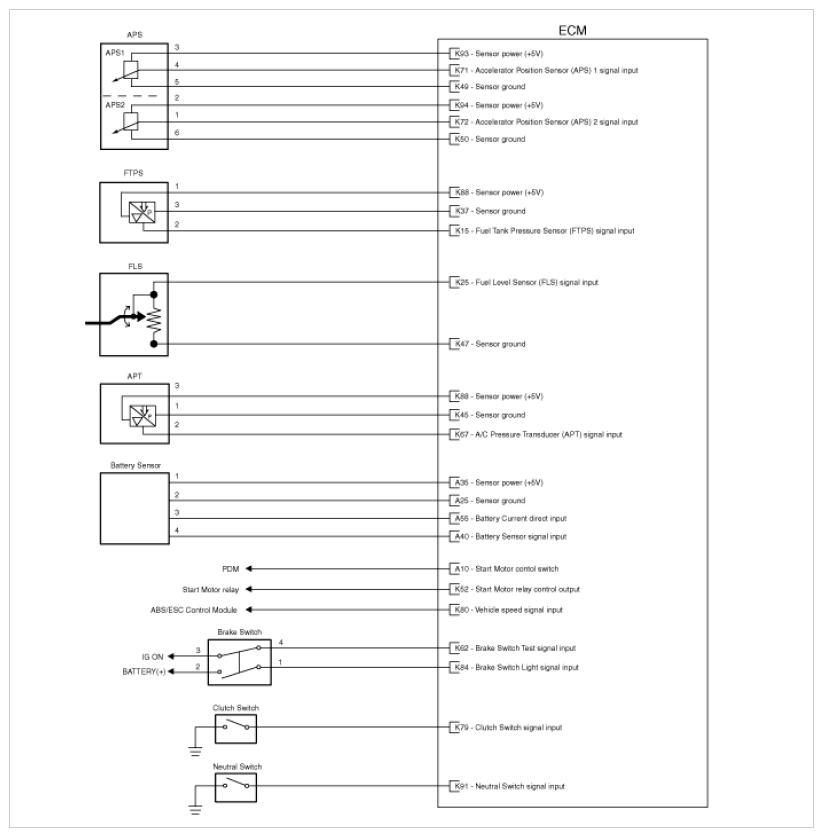

Fig 3: ECM - Circuit Diagram - M/T (3 Of 4)
G09885868Courtesy of HYUNDAI MOTOR AMERICA

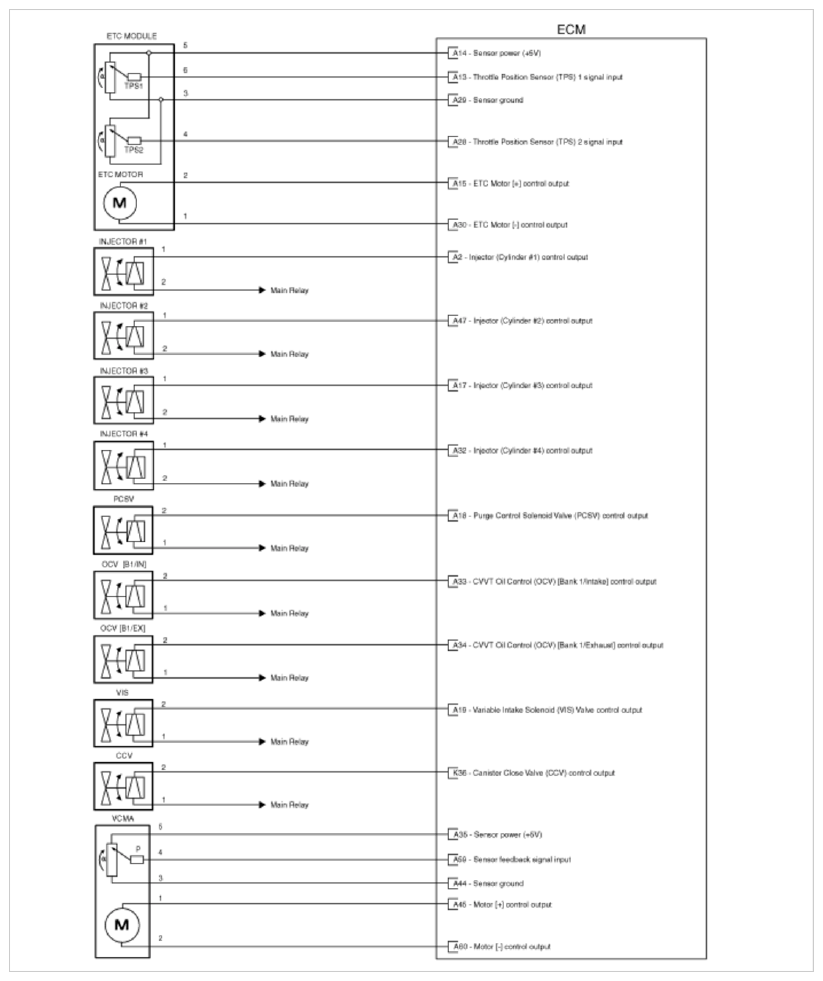

Fig 4: ECM - Circuit Diagram - M/T (4 Of 4)
G09885869Courtesy of HYUNDAI MOTOR AMERICA
