General Information - Engine Electrical System: Specifications: Notes
IGNITION SYSTEM SPECIFICATION
| Items | Specification | |
|---|---|---|
| Ignition coil | Primary resistance (Ω) | 0.75 ± 15% [20°C (68°F)] |
| Secondary resistance (kΩ) | 5.9 ± 15% [20°C (68°F)] | |
| Spark plugs | Type | SILZKR7B11 |
| Gap | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.) | |
| Condenser | Capacitance (μF) | 0.47 [1KHz] |
| Insulation resistance (MΩ) | 1, 000 [DC 500 V/1 Min] | |
CHARGING SYSTEM SPECIFICATION
| Items | Specification | ||
|---|---|---|---|
| Alternator | Rated voltage and current | 13.5 V, 90 A | |
| Speed in use | 1, 000 ~ 18, 000 RPM | ||
| Voltage regulator | IC Regulator built-in type | ||
| Regulator setting voltage | External mode | Refer to below graph | |
| Internal mode | 14.55 ± 0.3 V | ||
| Temperature compensation | External mode | 0 ± 3 mV/°C | |
| Internal mode | -3.5 ± 2 mV/°C | ||
| Battery | Model Type | CMF 68L - DIN | |
| Cold Cranking Amperage (A) | 600 (SAE)/480 (EN) | ||
| Capacity [20HR/5HR] (AH) | 68/54 | ||
| Reserve Capacity (Min) | 110 | ||
| Specific gravity at 25°C (77°F) | 1.280 ± 0.01 | ||

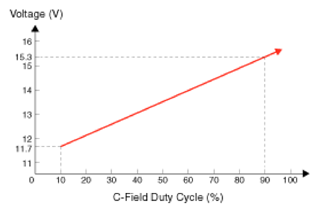

* Regulator Setting Voltage (External mode)
Information
- Model type description
CAUTION:
- Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18 °C (-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7 °C (80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
STARTING SYSTEM SPECIFICATION
| Items | Specification | ||
|---|---|---|---|
| Starter | Rated voltage | 12 V, 1.2 kW | |
| No. of pinion teeth | 13 | ||
| Performance [No-load, 11 V] |
Ampere | Max. 70 A | |
| Speed | Min. 2, 400 RPM | ||
