Removal 2014

Remove the battery and the battery tray.
(Refer to battery and battery tray in "ENGINE AND TRANSAXLE ASSEMBLY ". )
Remove the under cover (A).
Tightening torque :

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the air cleaner assembly and air duct.
(Refer to Air cleaner in "ENGINE AND TRANSAXLE ASSEMBLY ")

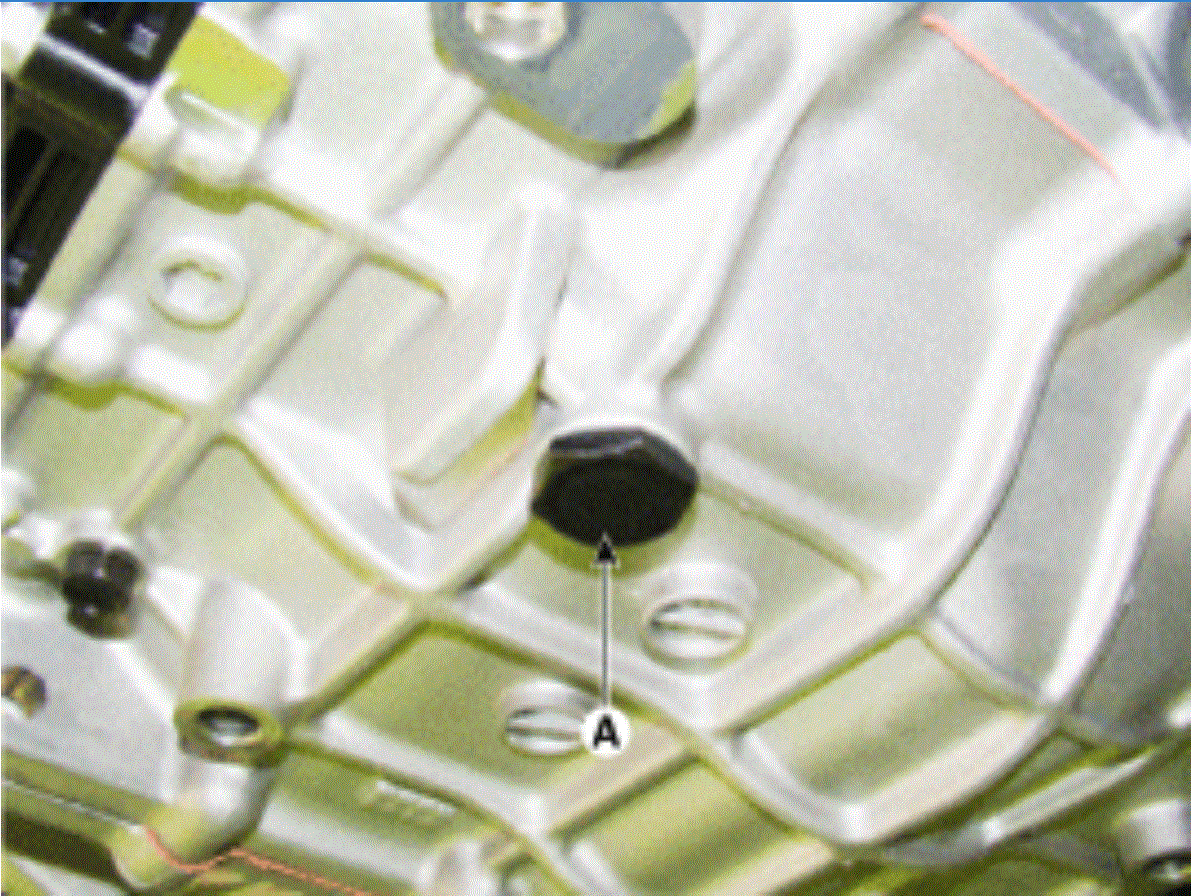

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Drain plug tightening torque :

Fig 2: Automatic Transmission Drain Plug
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Replace the gasket before reinstalling the drain plug.

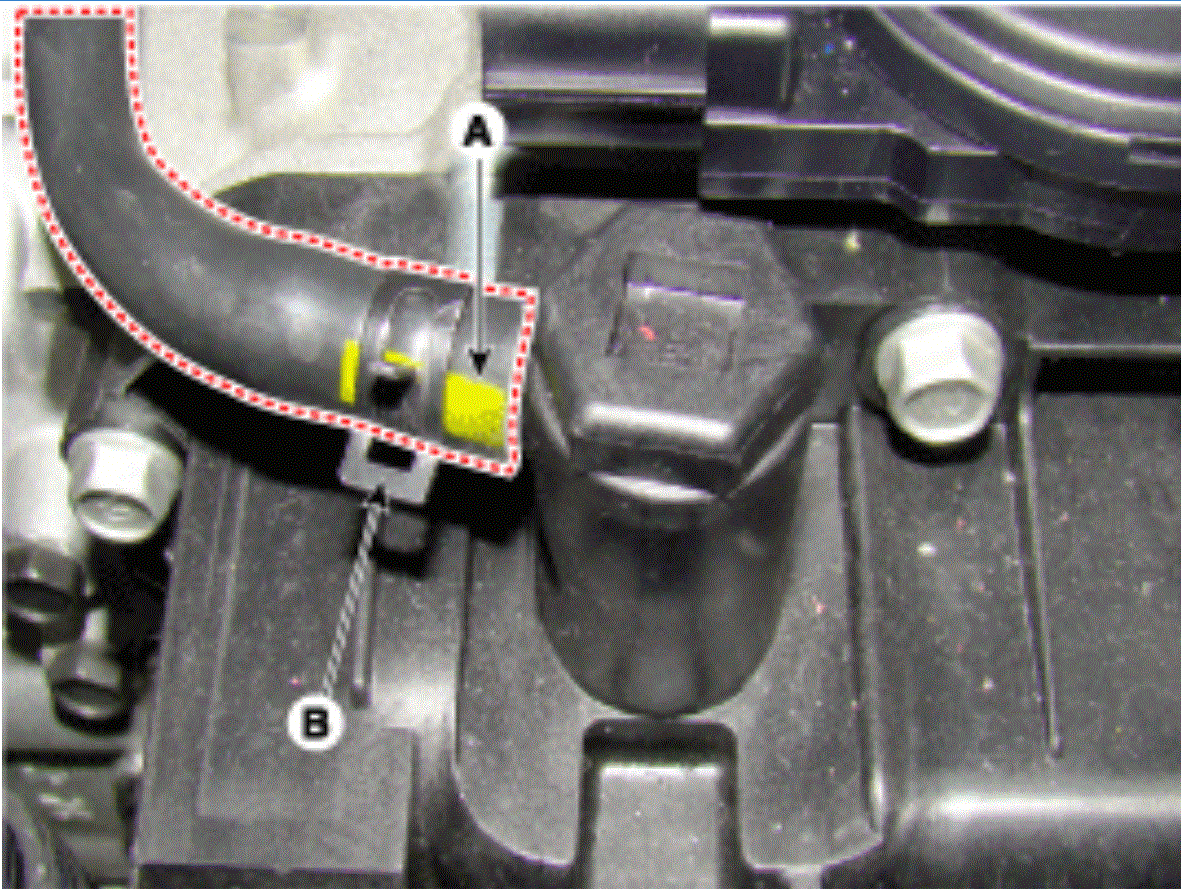

Disconnect the air breather hose (A) from the valve body cover after disconnecting the clamp (B).

Fig 3: Valve Body Cover Air Breather Hose An Clamp
Courtesy of HYUNDAI MOTOR AMERICA

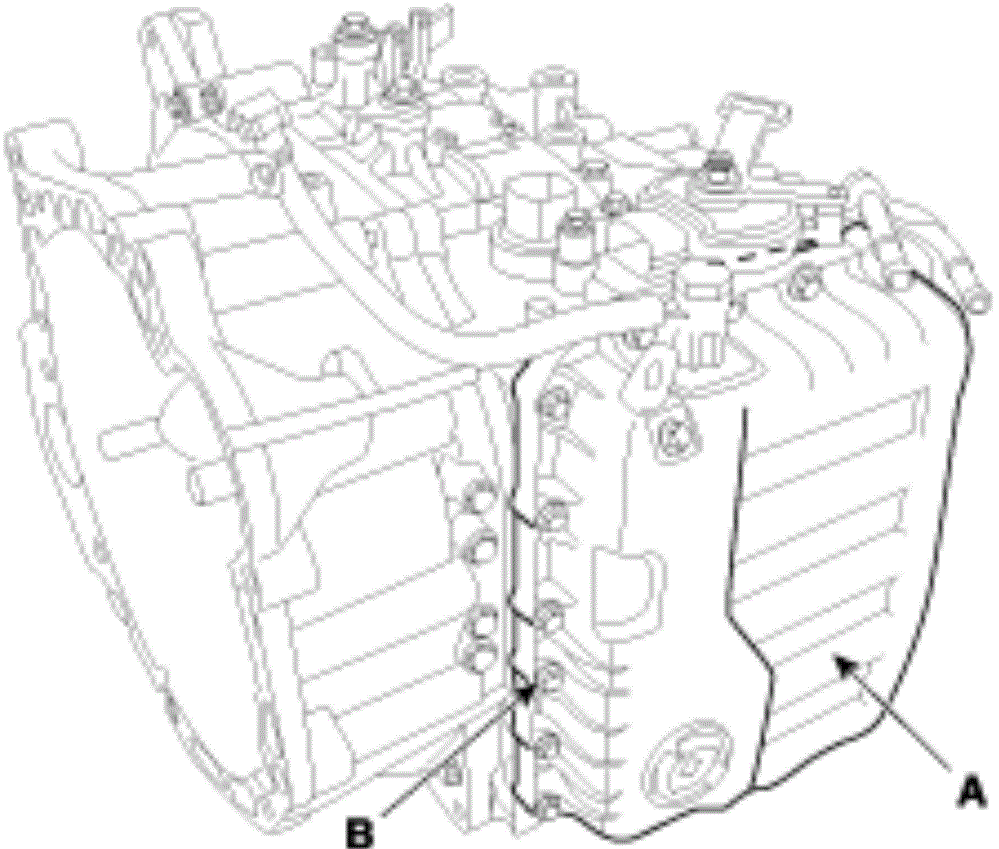

Remove the bolts (B).
Remove the valve body cover (A).
Tightening torque :

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

Fig 4: Valve Body Cover And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bolts.

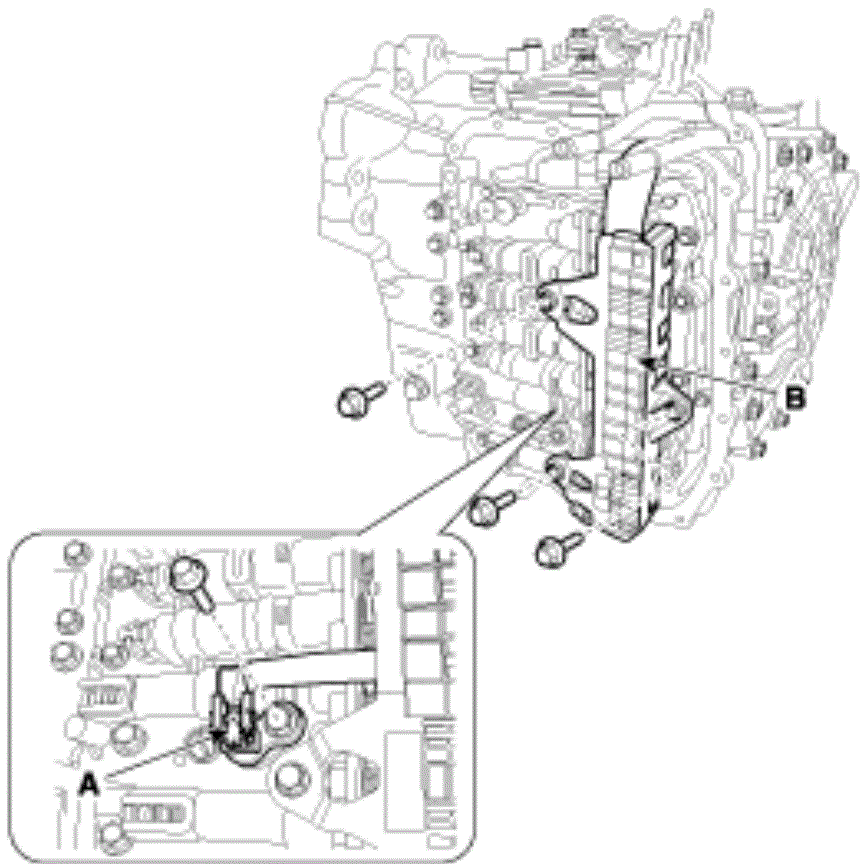

Disconnect the solenoid valve connector (B) and the oil temperature sensor (A) from the valve body.
Tightening torque :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 5: Oil Temperature Sensor And Solenoid Valve Connector
Courtesy of HYUNDAI MOTOR AMERICA

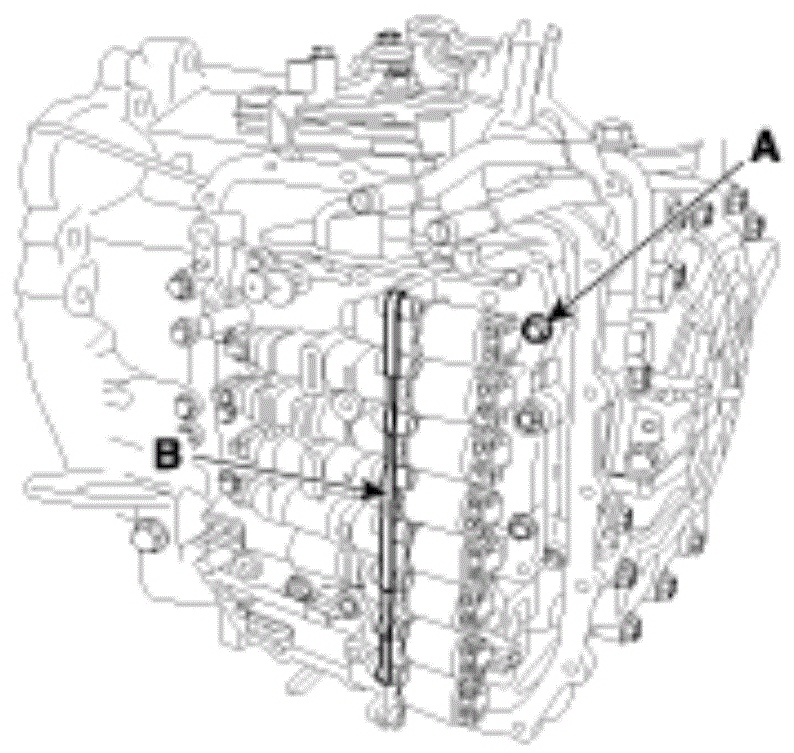

Remove the solenoid valve support bracket (B) and the valve body mounting bolt (A-1ea).
Tightening torque :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 6: Valve Body Mounting Bolt And Solenoid Valve Support Bracket
Courtesy of HYUNDAI MOTOR AMERICA

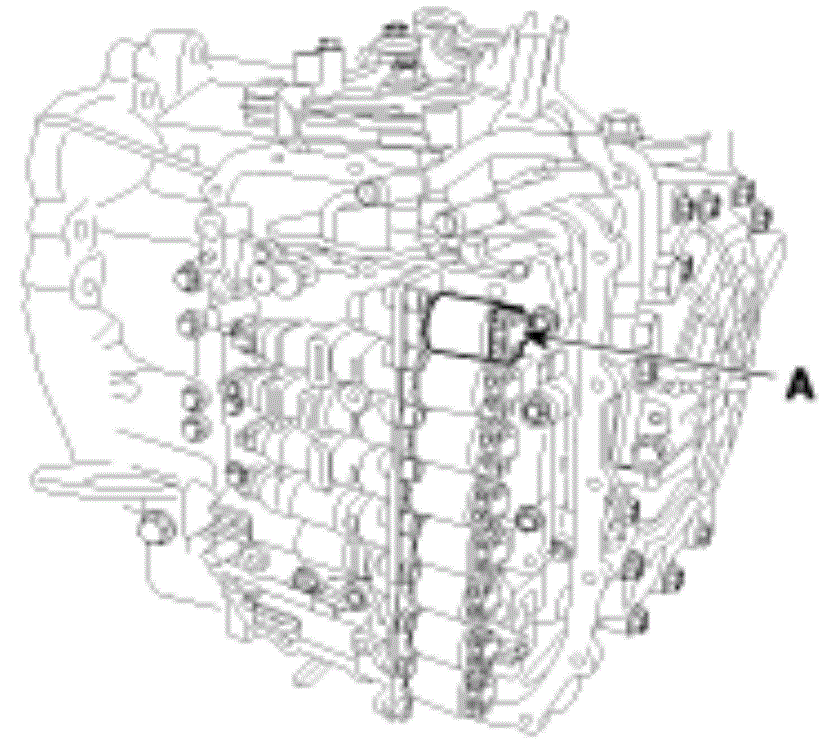

Remove the torque converter control solenoid valve (A).

Fig 7: Torque Converter Control Solenoid Valve
Courtesy of HYUNDAI MOTOR AMERICA
