Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

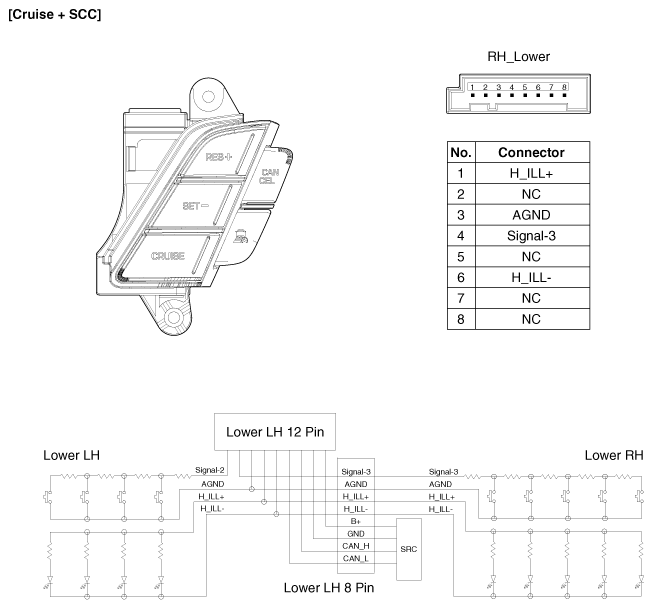

Fig 1: Smart Cruise Control Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
