Components and Components Location: Components: [Premium]

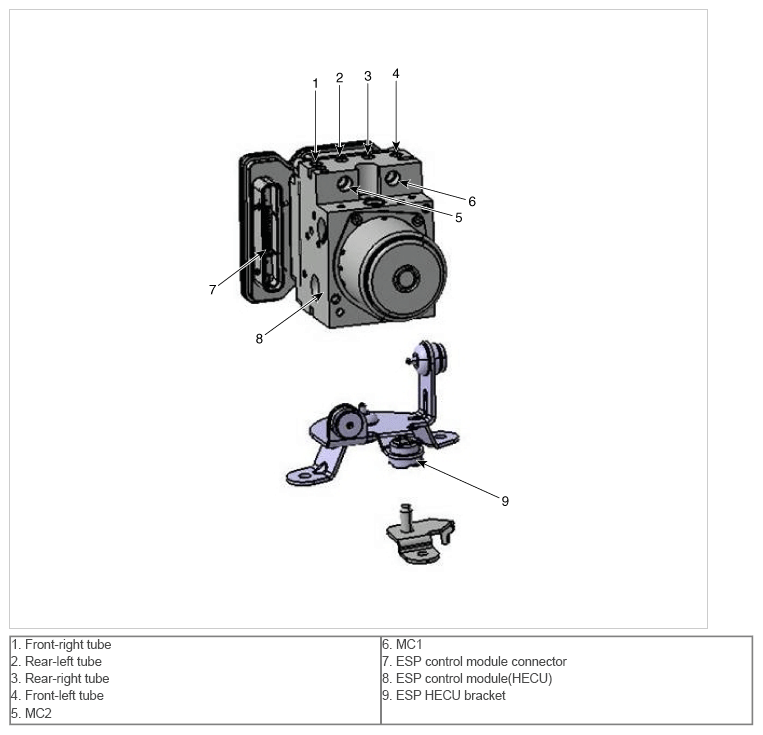

Fig 1: ESP Control Unit Components Location - Premium
G09790320Courtesy of HYUNDAI MOTOR AMERICA
