Signal Waveform & Data

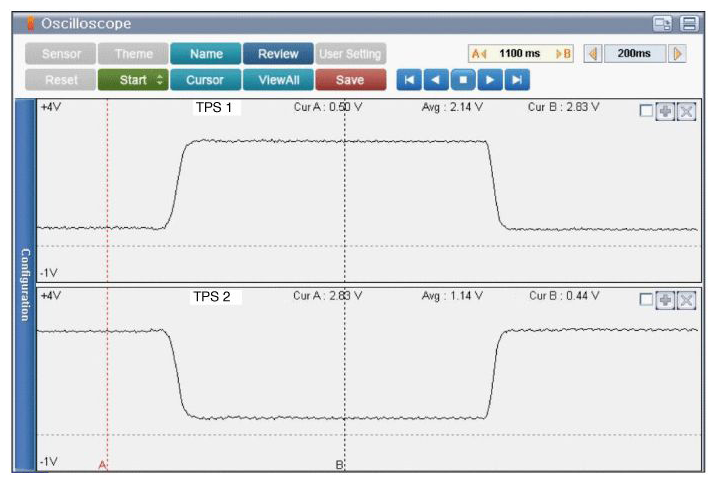

Fig 1: Display - Normal Waveform Of TPS1 And TPS2 With No Accel Pedal Depressed IG ON Condition Screen
G09792805Courtesy of HYUNDAI MOTOR AMERICA
