Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
Do not reuse the manifold absolute pressure sensor that has been dropped.

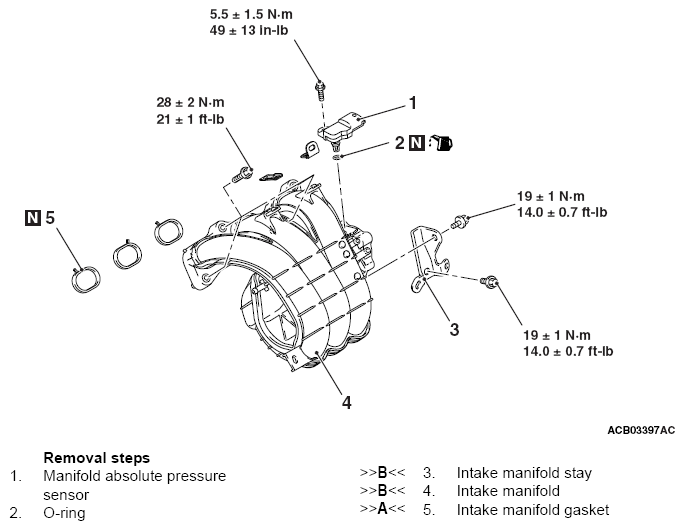

Fig 1: Removing/Installing Intake Manifold Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
