Ignition Switch Check
WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

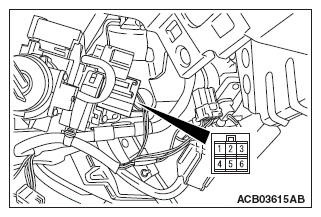

With the key reminder switch mounted to the vehicle, disconnect the ignition switch connection connector, and then perform the continuity check in each ignition key position.
| Ignition key position | Terminal number | Normal condition |
|---|---|---|
| LOCK | 1 - 2, 1 - 4, 1 - 5, 1 - 6 | No continuity |
| ACC | 1 - 6 | Continuity exists (2 ohms or less) |
| ON | 1 - 2 - 4 - 6 | Continuity exists (2 ohms or less) |
| START | 1 - 2 - 5 | Continuity exists (2 ohms or less) |
