Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission Control System
>>
Inhibitor Switch
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

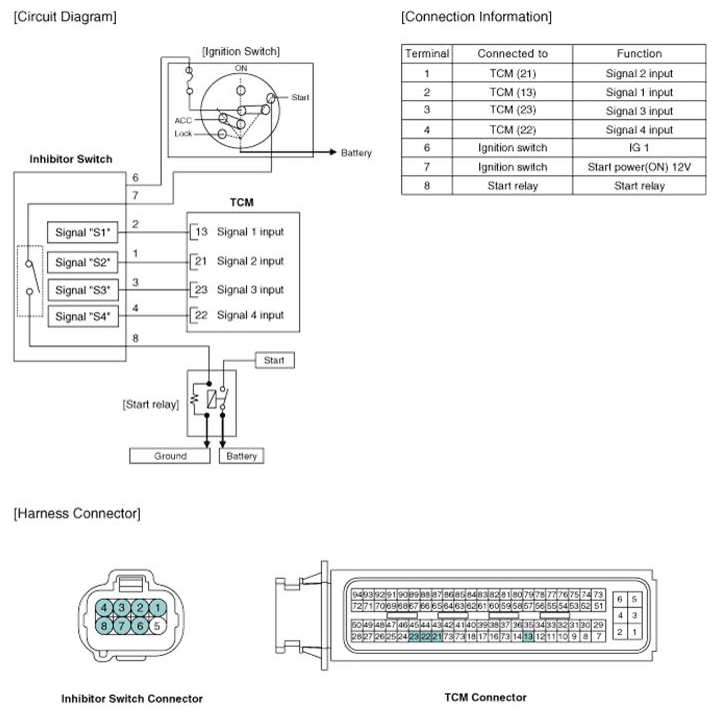

Circuit Diagram
Fig 1: Inhibitor Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
