Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

< M/T >

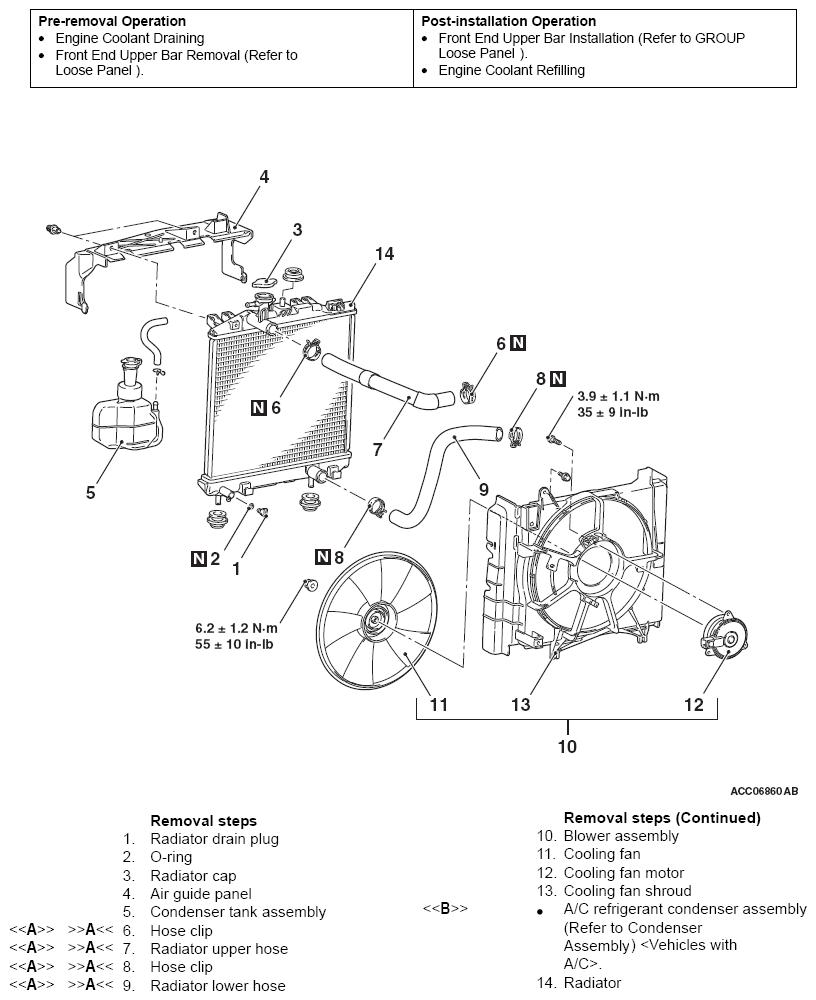

Fig 1: Removing/Installing Radiator & Mounting Bolts With Torque Specifications (M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< CVT >

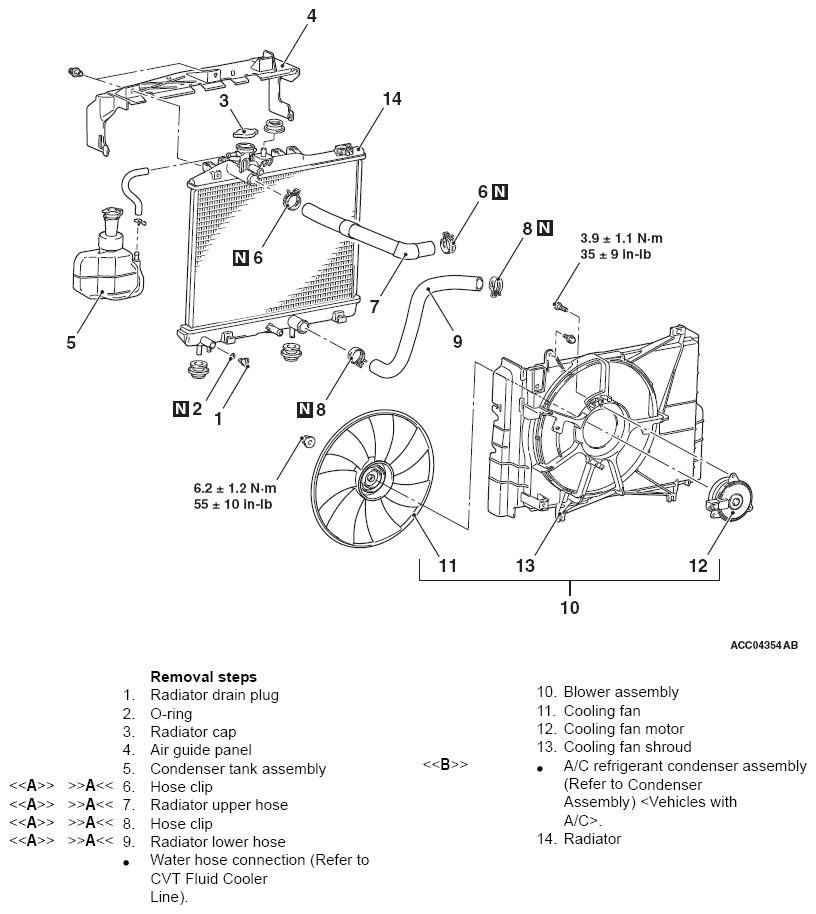

Fig 2: Removing/Installing Radiator & Mounting Bolts With Torque Specifications (CVT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
