Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the inhibitor connector (B) and then remove the shift cable (A) by removing nut (C).
Tightening torque: 13.7 ~ 17.7 N.m (1.4 ~ 1.8 kgf.m, 10.1 ~ 13.0 lb-ft)

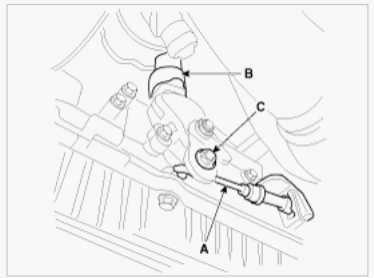

Fig 1: Identifying Shift Cable, Nut & Inhibitor Connector

G00540587

Courtesy of HYUNDAI MOTOR AMERICA

Remove the manual control lever (B) after removing a nut (A).
Remove the inhibitor switch assembly after removing the bolts (C).
Tightening torque:

[A] 16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)

[C] 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

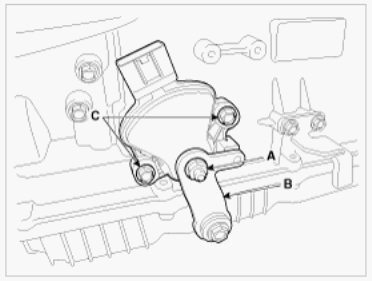

Fig 2: Identifying Manual Control Lever, Nut & Inhibitor Switch Assembly Bolts
Courtesy of HYUNDAI MOTOR AMERICA
