Components and Components Location: Components

Fig 1: Timing System Replacement Components With Torque Specifications (1 Of 2)
G09267193Courtesy of HYUNDAI MOTOR AMERICA

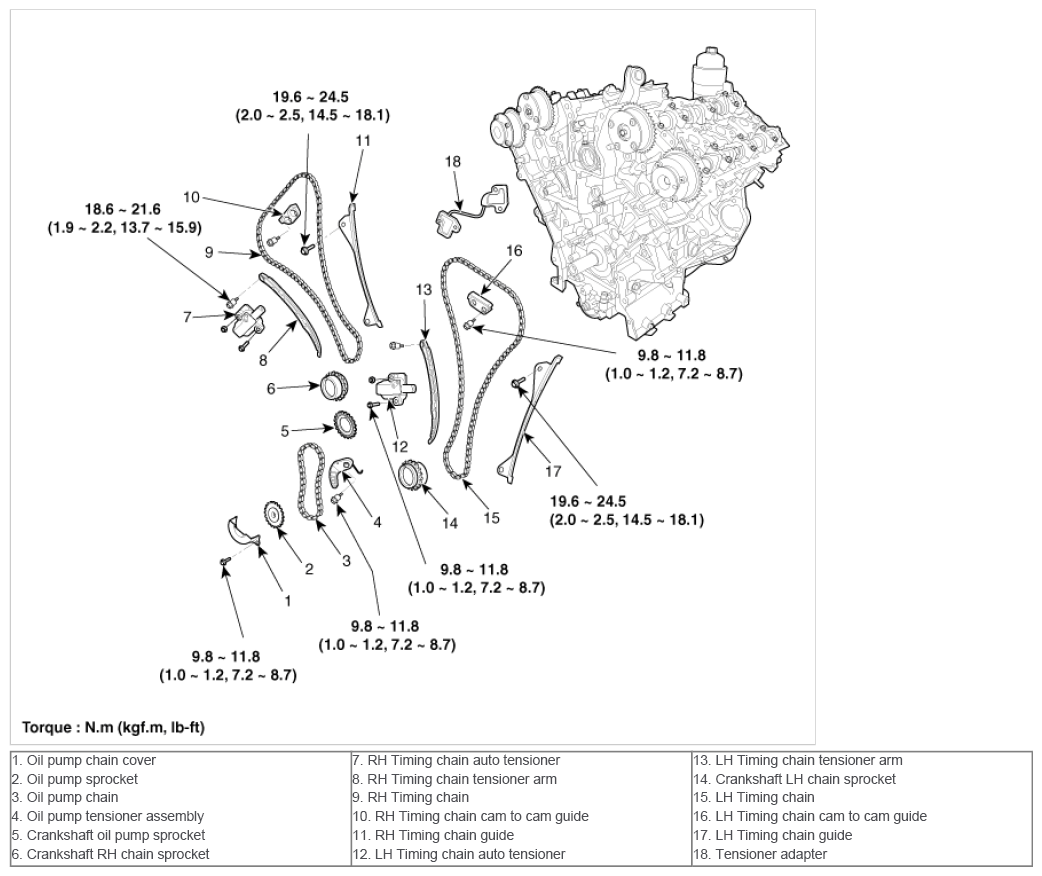

Fig 2: Timing System Replacement Components With Torque Specifications (2 Of 2)
G09267194Courtesy of HYUNDAI MOTOR AMERICA
