Component Location

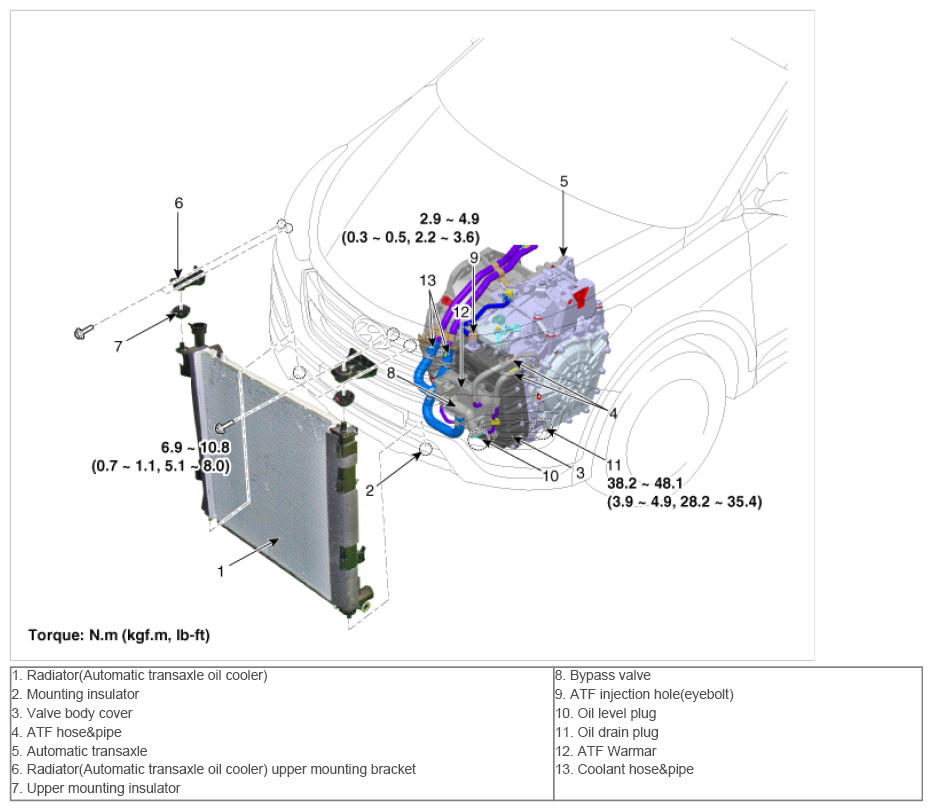

Fig 1: Hydraulic System Component Location (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

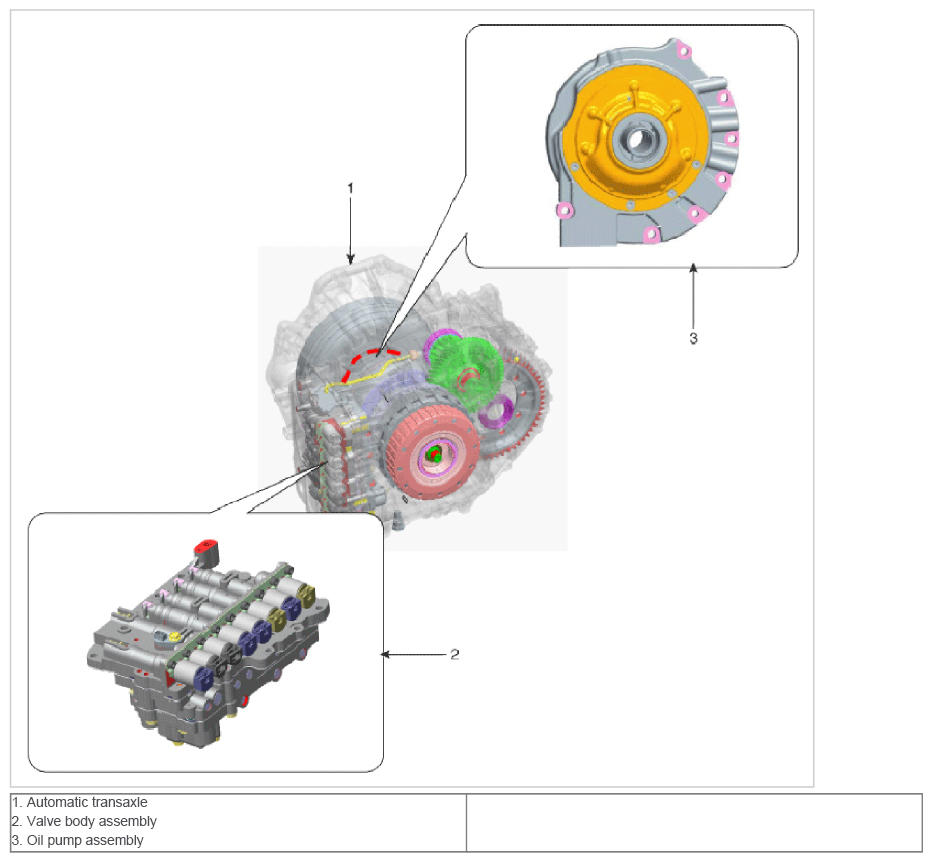

Fig 2: Hydraulic System Component Location (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
