Components (2)

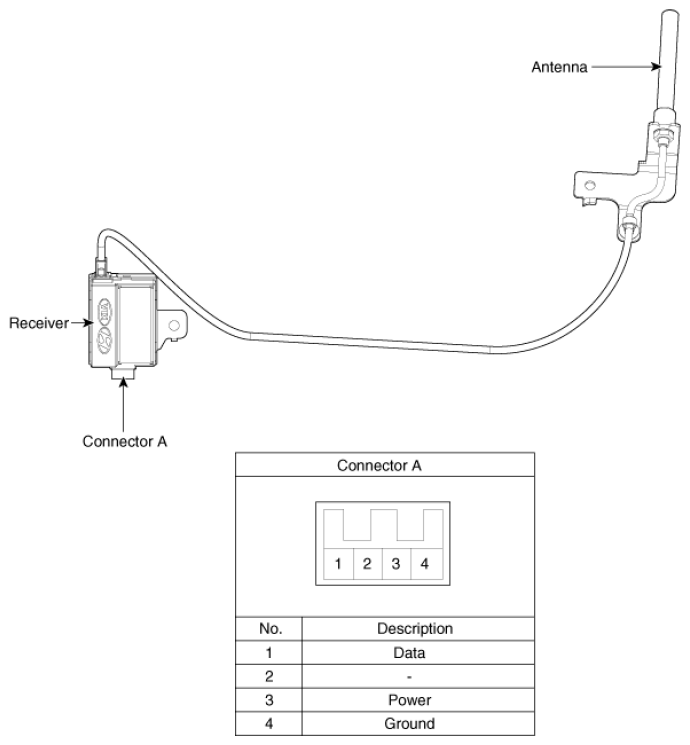

Fig 1: Identifying Receiver, Connector And Antenna
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
