Components and Components Location: Components

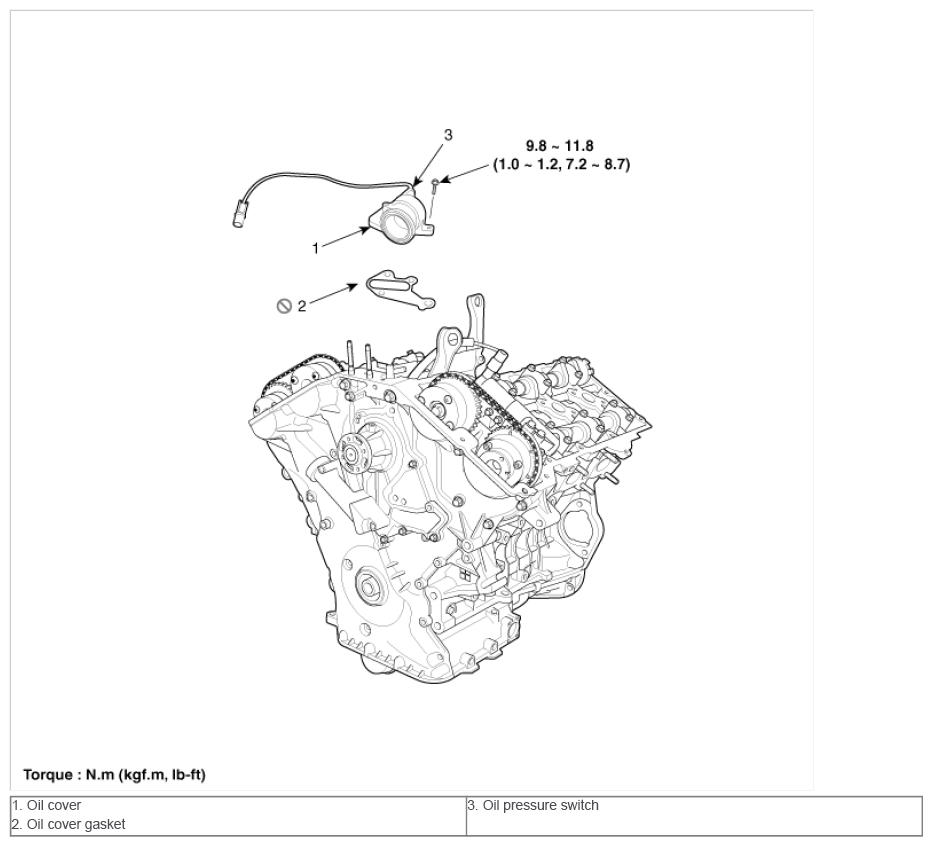

Fig 1: Oil Cover, Oil Cover Gasket, Oil Pressure Switch And Mounting Bolt Torque Specification
G09267329Courtesy of HYUNDAI MOTOR AMERICA
