Components and Components Location: Components

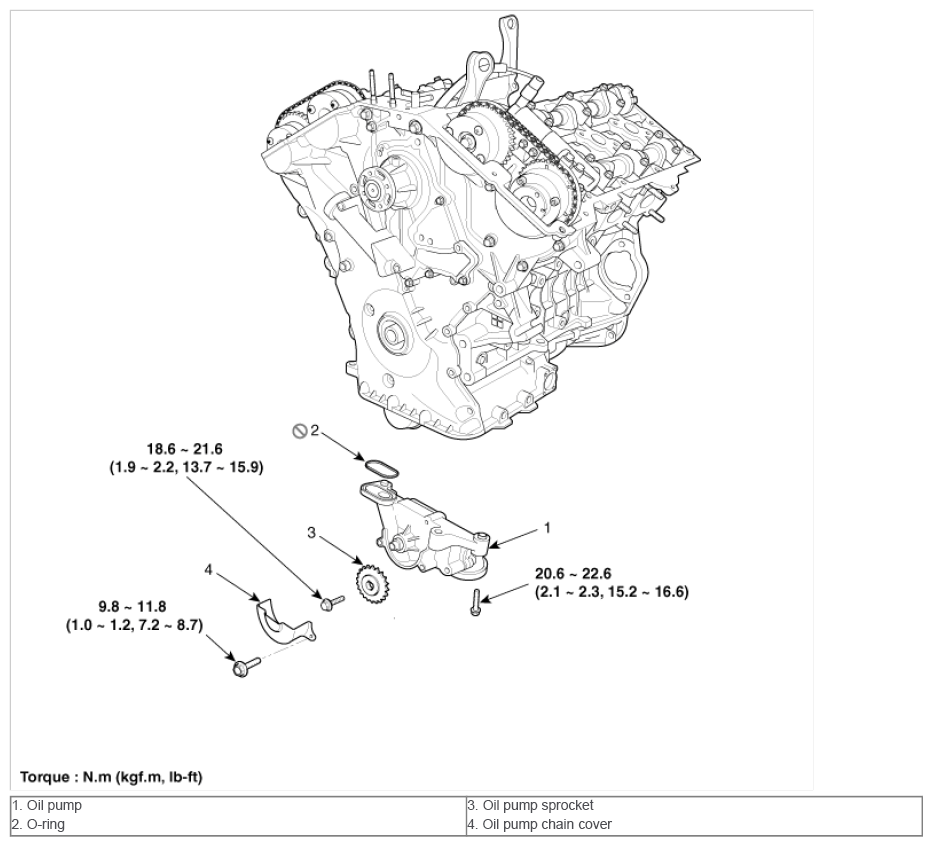

Fig 1: Oil Pump, O-Ring, Oil Pump Sprocket, Oil Pump Chain Cover And Mounting Bolts With Torque Specification
G09267325Courtesy of HYUNDAI MOTOR AMERICA
