Repair Procedures: Inspection

[Measuring Resistance]

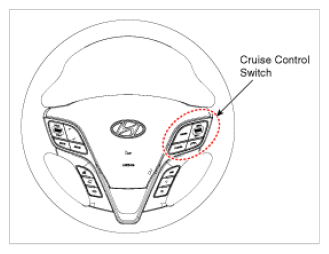

1. Disconnect the cruise control switch connector from the control switch.

   Courtesy of HYUNDAI MOTOR AMERICA

2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).

   Function switch	Terminal	Resistance [kΩ ± 5%]
   CANCEL	2 - 7	0.18
   RES+	2 - 7	0.33
   SET-	2 - 7	0.55
   CRUISE	2 - 7	0.88

3. If not within specification, replace switch.

[Measuring Voltage]

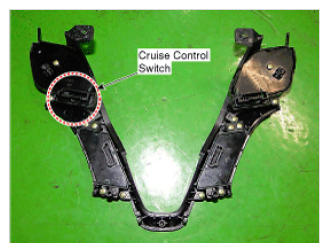

1. Connect the cruise control switch connector to the control switch.

   Courtesy of HYUNDAI MOTOR AMERICA

2. Measure voltage between terminals on the harness side connector when each function switch is ON (switch is depressed).

   Function switch	Terminal	Voltage (V)
   CANCEL	2 - 7	0.76
   RES+	2 - 7	1.41
   SET-	2 - 7	2.05
   CRUISE	2 - 7	2.66

3. If not within specification, replace switch.
