Repair Procedures: Removal

Remove the floor console.
Refer to FLOOR CONSOLE ASSEMBLY .
Remove the air duct.
Disconnect the shift cable (A).

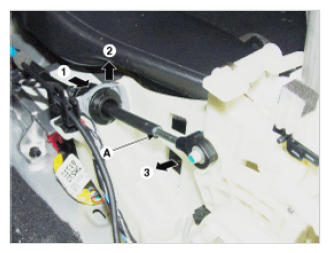

Fig 1: Disconnecting Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the retainer (A) and nut (B).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

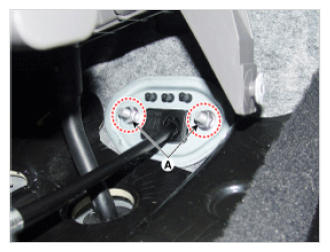

Fig 2: Identifying Retainer And Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the nut (C) from the manual control lever.
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
Remove the cable (B) from the bracket (A) at transaxle assembly side.
Remove the shift cable by pulling it toward the interior.

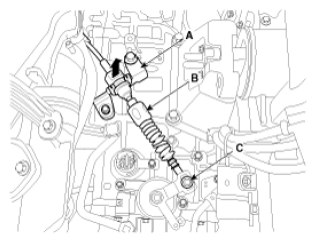

Fig 3: Removing Transaxle Assembly Side Bracket Cable
Courtesy of HYUNDAI MOTOR AMERICA
