Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

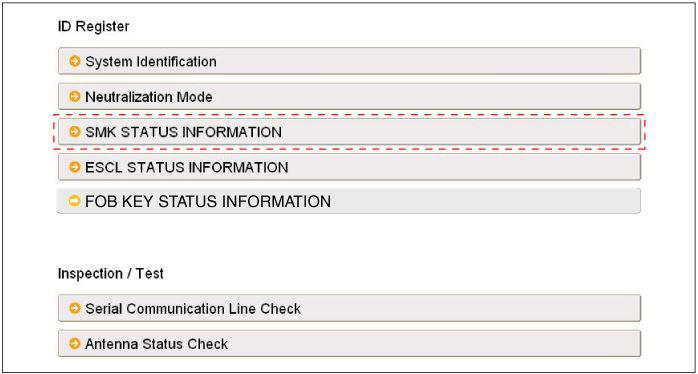

    Fig 1: Selecting SMK Status Information
    G00547324Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Display - SMK Status Information Screen
    G06875387Courtesy of HYUNDAI MOTOR CO.
