Repair Procedures: Replacement: Removal

CAUTION:

Remove the following items.
1. Front pillar trim
  Refer to INTERIOR TRIM .
2. Inside rear view mirror
  Refer to INSIDE REAR VIEW MIRROR REPLACEMENT .
3. Wiper arm
  Refer to COWL TOP COVER .
4. Cowl top cover
  Refer to COWL TOP COVER .

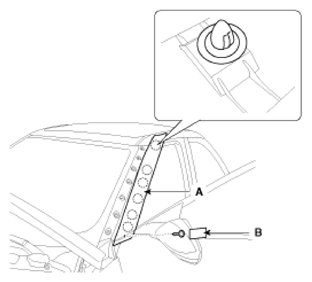

To remove the A pillar garnish (A), loosen the mounting screw after removing the cap (B).
Tightening torque:

0.5 ~ 1.0 N.m (0.05 ~ 0.1 kgf.m, 0.4 ~ 0.7 lb-ft)

Fig 1: Identifying A Pillar Garnish, Cap And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the windshield glass upper molding (A).

Fig 2: Identifying Windshield Glass Upper Molding
Courtesy of HYUNDAI MOTOR AMERICA
Cut out the sealant using the sealant cutting tool (09861-31100).

Fig 3: Cutting Sealant Using Sealant Cutting Tool (09861-31100)
Courtesy of HYUNDAI MOTOR AMERICA

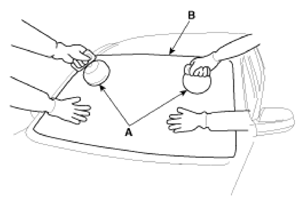

Remove the windshield glass (B) carefully using the glass holder (A).

Fig 4: Removing Windshield Glass Using Glass Holder
Courtesy of HYUNDAI MOTOR AMERICA
