Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD ")

  3. Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening the bolt.

    [USA]

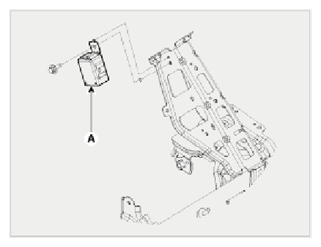

    Fig 1: Identifying Immobilizer Unit (USA)
    G09135363Courtesy of HYUNDAI MOTOR AMERICA

    [CANADA]

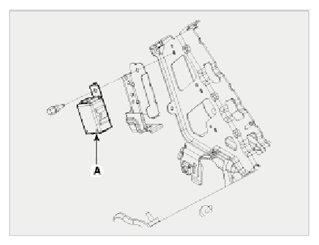

    Fig 2: Identifying Immobilizer Unit (Canada)
    G09135364Courtesy of HYUNDAI MOTOR AMERICA
