Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

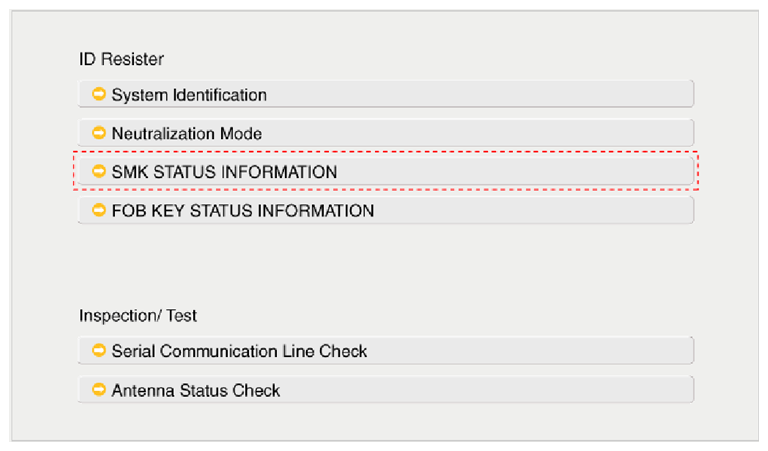

    Fig 1: Display - Smart Key Status Information Selection Screen
    G09134461Courtesy of HYUNDAI MOTOR AMERICA

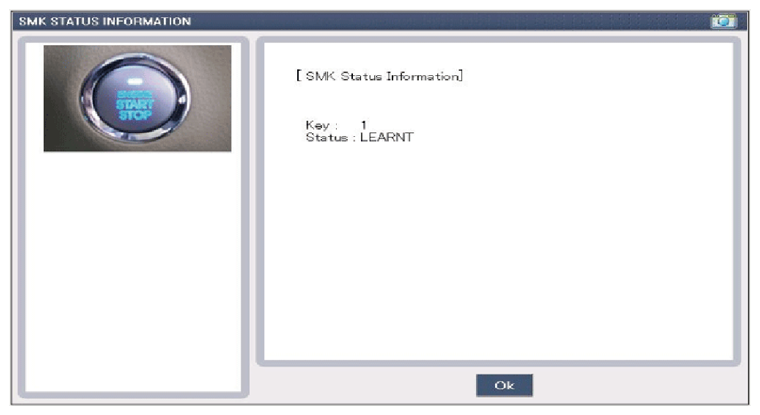

    Fig 2: Display - Smart Key Status Information Screen
    G09134462Courtesy of HYUNDAI MOTOR AMERICA
