Interior #1 antenna
NOTE:
Take care not to scratch the crash pad and related parts.
- Disconnect the negative (-) battery terminal.
- Remove the console.
(Refer to "CONSOLE ")
- Remove the multimedia jack.

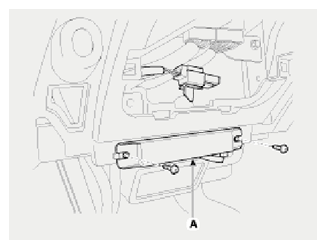

- Disconnect the connector, then remove the interior #1 antenna (A) after loosening 2 screws.
