Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel.

    (Refer to "CRASH PAD ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to "CRASH PAD ")

  4. Remove the wiper switch.

    (Refer to MULTIFUNCTION SWITCH .

  5. Remove the ignition switch after disconnecting the ignition switch 6P connector.
  6. Remove the key warning/immobilizer connector (A).

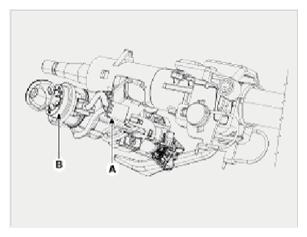

    Fig 1: Warning/Immobilizer Connector And Switch
    G09135394Courtesy of HYUNDAI MOTOR AMERICA
  7. After loosening the screw, remove the key warning switch (B).
  8. Pushing lock pin with key ACC.
  9. Remove the key lock cylinder (A).

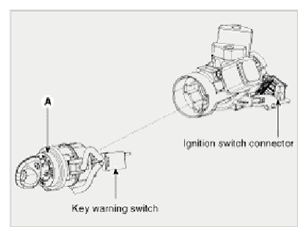

    Fig 2: Key Warning Switch, Lock Cylinder And Ignition Switch Connector
    G09135395Courtesy of HYUNDAI MOTOR AMERICA
