Main Crash Pad Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  Refer to FRONT SEAT .
2. Front pillar trim
  Refer to INTERIOR TRIM .
3. Floor console assembly & Console side cover
  Refer to CONSOLE .
4. Front door scuff trim
  Refer to INTERIOR TRIM .
5. Cowl side trim
  Refer to INTERIOR TRIM .
6. Crash pad side cover
7. Crash pad lower panel
8. Cluster fascia upper panel & Cluster fascia lower panel
9. Cluster assembly
10. Center fascia panel
11. Audio assembly
12. Glove box & Glove box housing
13. Steering column
  Refer to STEERING COLUMN AND SHAFT .
After loosening the mounting screws, then remove the start/stop button bezel (A).
Disconnect the start/stop button bezel connector (B).

Fig 1: Identifying Start/Stop Button Bezel With Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad center lower panel (A).

Fig 2: Identifying Crash Pad Center Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 3: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the side air vent duct [RH] (A).

Fig 4: Identifying Side Air Vent Duct (RH)
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws and bolts, then remove the crash pad main lower panel (A).

Fig 5: Identifying Crash Pad Main Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the smart key unit antenna connector (A).

Fig 6: Identifying Smart Key Unit Antenna Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the center speaker connector (A) and BCM unit connector (B).

Fig 7: Identifying Center Speaker And BCM Unit Connector
Courtesy of HYUNDAI MOTOR AMERICA

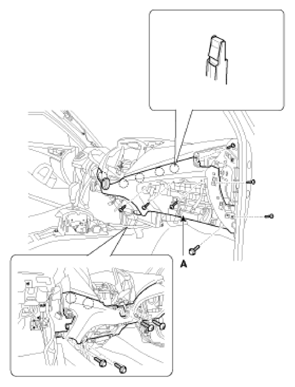

Loosen the mounting bolts (A).

Fig 8: Identifying Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the photo sensor (A).
Disconnect the photo sensor connector (B).

Fig 9: Identifying Photo Sensor With Connector
Courtesy of HYUNDAI MOTOR AMERICA

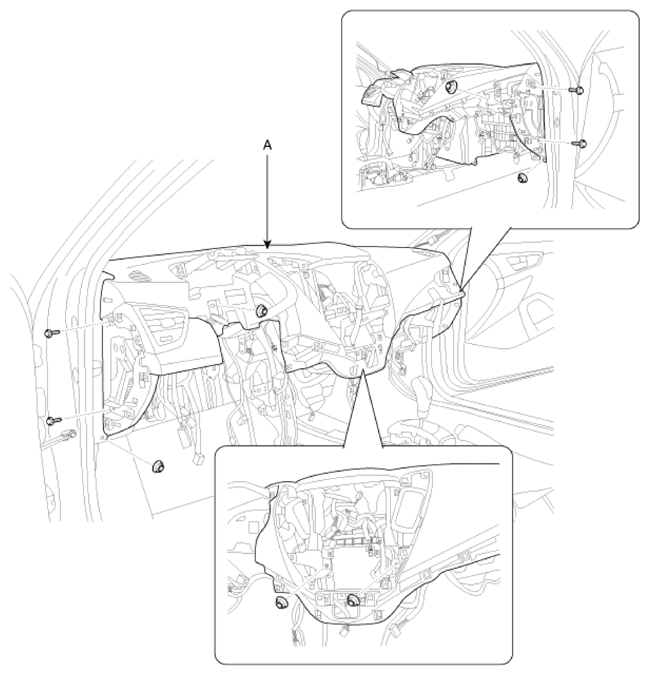

After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).

Fig 10: Identifying Main Crash Pad Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger's airbag connector (A).

Fig 11: Identifying Passenger's Airbag Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
