Repair Procedures: Replacement

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the side cover (A).

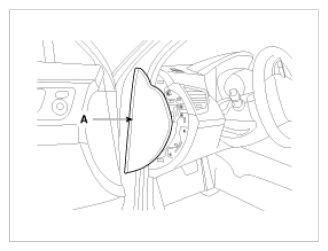

    Fig 1: Identifying Side Cover
    G08812000Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fuse box cover (A) and loosen the mounting screws and then remove the crash pad lower cover (B).

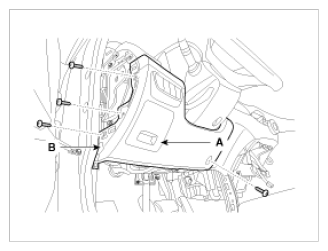

    Fig 2: Identifying Fuse Box And Crash Pad Lower Cover With Mounting Bolts
    G08812001Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the diagnosis connector (A).

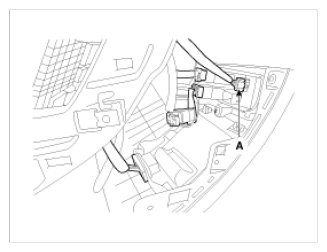

    Fig 3: Identifying Diagnosis Connector
    G08812002Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the shower duct (A).

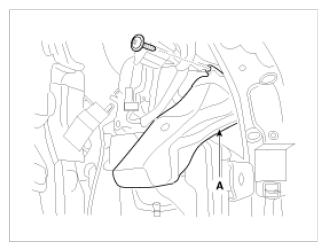

    Fig 4: Identifying Shower Duct
    G08812003Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the temperature control actuator connector (A) and loosen the mounting screws and then remove the temperature control actuator (B).

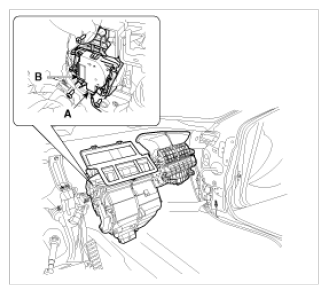

    Fig 5: Identifying Temperature Control Actuator And Connector
    G08812004Courtesy of HYUNDAI MOTOR AMERICA
  7. Installation is the reverse order of removal.
