Repair Procedures: Replacement

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & blower unit.

    (Refer to HA group - "HEATER UNIT ")

  3. Remove the heater unit from the blower unit.

    (Refer to HA group - "HEATER UNIT ")

  4. Loosen the mounting screws and then remove the temperature control actuator (A).

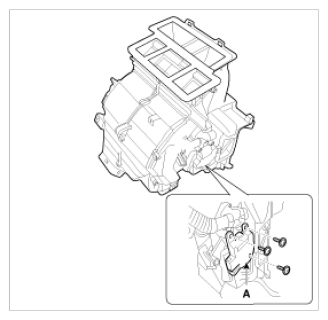

    Fig 1: Identifying Temperature Control Actuator And Mounting Screws
    G08811997Courtesy of HYUNDAI MOTOR AMERICA
