Components Location

WARNING: This page is about a different variant/trim than selected.

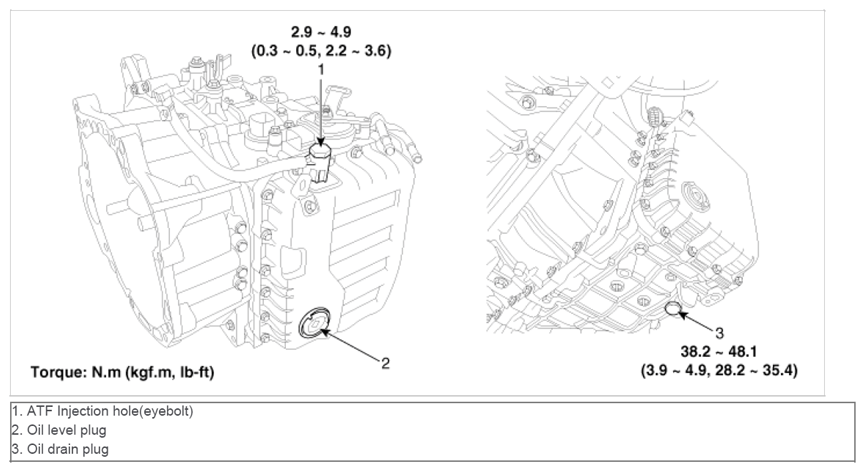

Fig 1: ATF Injection Hole, Oil Level Plug & Oil Drain Plug With Torque Specifications
G09150562Courtesy of HYUNDAI MOTOR AMERICA
