Interior C

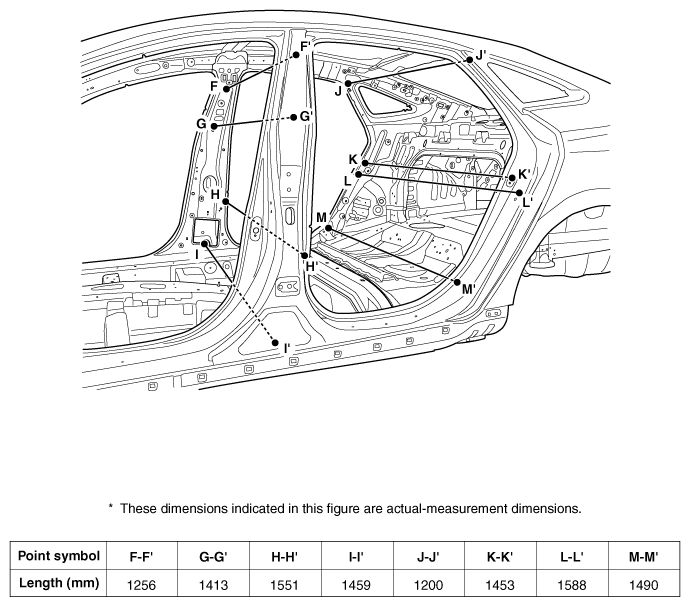

Fig 1: Interior C Dimensions
G10368289Courtesy of HYUNDAI MOTOR AMERICA

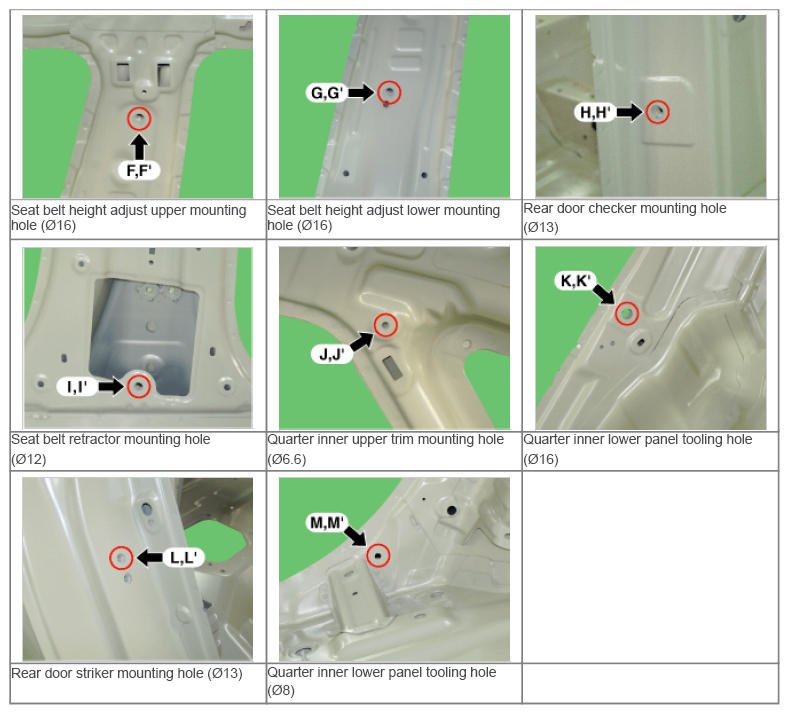

Fig 2: Quarter Inner Upper Trim Panel Tooling Hole
G10368290Courtesy of HYUNDAI MOTOR AMERICA
