Interior D

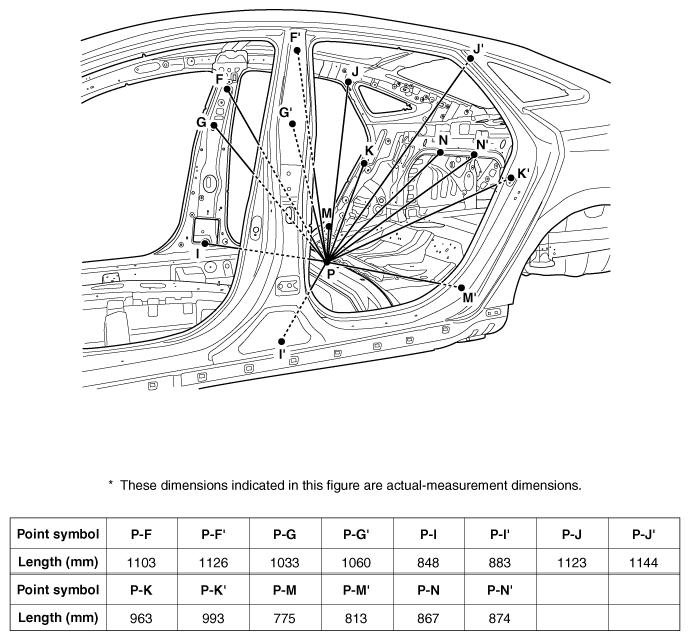

Fig 1: Interior D Dimensions
G10368291Courtesy of HYUNDAI MOTOR AMERICA

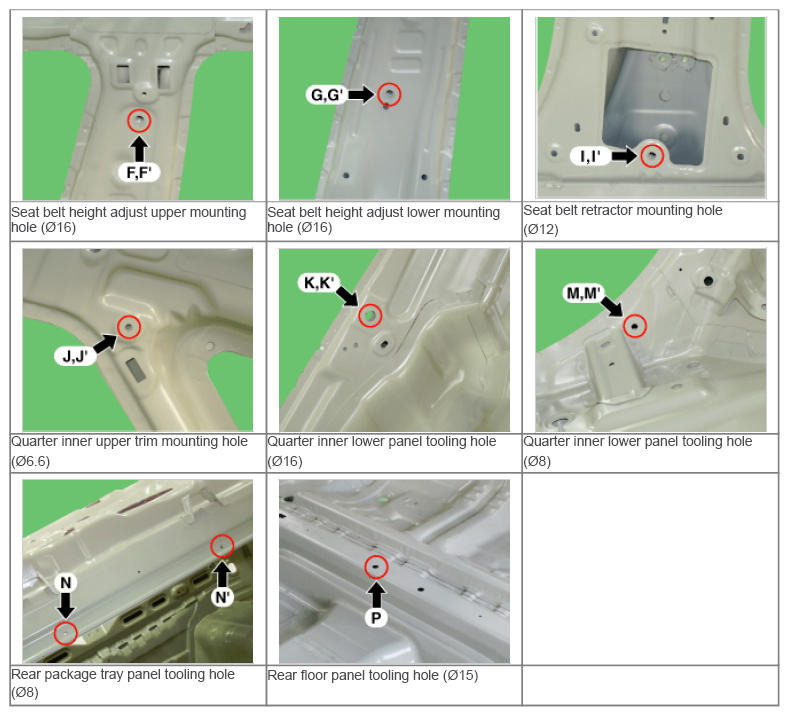

Fig 2: Locating Quarter Inner Lower And Rear Floor Panel Tooling Holes
G10368292Courtesy of HYUNDAI MOTOR AMERICA
