Components And Components Location: Components

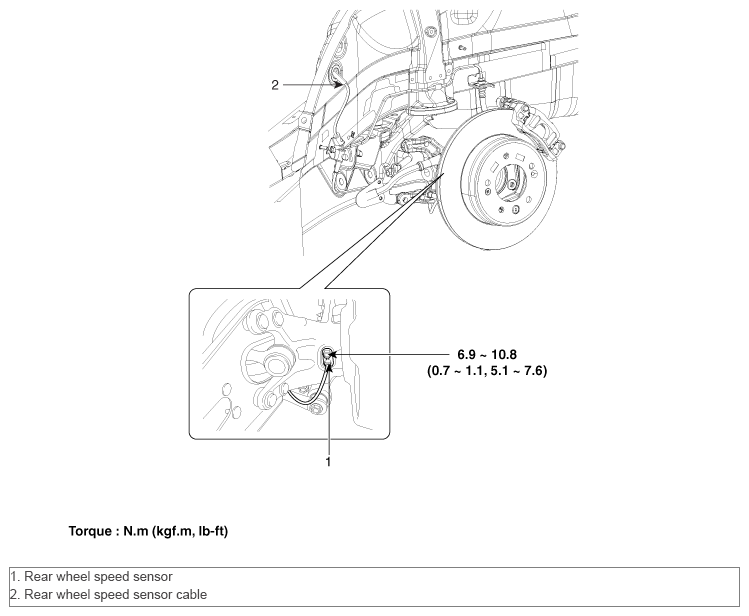

Fig 1: Rear Wheel Speed Sensor Components With Torque Specifications
G10368253Courtesy of HYUNDAI MOTOR AMERICA
