CALIFORNIA Dealers Only - Carb In-Use Monitor Performance Report Data Collection (Dc1) (SC DC1)

Publication date: 2015-06-01
Reference number: SC DC1
Supersedes refnos: 15-01-027

CALIFORNIA DEALERS ONLY - CARB IN-USE MONITOR PERFORMANCE REPORT DATA COLLECTION (DC1)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 15-01-027, Date of Issue: June, 2015

HYUNDAI:	2015 ALL MODELS
GROUP:	CAMPAIGN

REVISION HISTORY

IMPORTANT: *** Dealer Stock and Retail Vehicles ***
California Dealers only must perform this data collection on vehicles whenever an affected vehicle is in the shop for any maintenance or repair if the vehicle meets the criteria below.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.

NOTE:

Claim payment requires that data collection results must be faxed or emailed to Hyundai as instructed and are subject to claim charge back if not received.
Perform this Campaign first prior to completion of any other open Campaigns.
Do NOT perform any ECU Update until after this data collection.

DESCRIPTION

This bulletin provides information and procedures for collecting OBD In-Use Monitor Performance Report (IUMPR) data on certain 2015MY vehicles at California dealers. This reporting is mandated by CARB (California Air Resources Board).

Affected vehicles must meet ALL of the following criteria to be eligible for DC1:

WebDCS shows this as an open Data Collection code DC1 for the vehicle.
Vehicle has over 3000 miles on its odometer.
Vehicle didn't have battery replacement/disconnection or ECU Update on this service visit.
Vehicle does not have a check engine light on.

Applicable Vehicles:

2015MY vehicles with an open DC1 data collection Campaign.

WARRANTY INFORMATION

Model Year	Op Code	Operation	Op Time
2015	CCARB015	IUMPR Data Collection	0.3

NOTE: Submit Claim on Campaign Claim Entry Screen.

OVERVIEW OF THE SERVICE PROCEDURE

A. Basic Overview of the Procedure

Fill out the Vehicle Test Sheet located on the next page of this bulletin with the vehicle information.
Use GDS to read the Calibration ID of the vehicle and enter it on the Vehicle Test Sheet.
Use GDS to read and screen print the In Use Performance Report data to attach as the second page to the Vehicle Test Sheet.
Send the following 3 pages by either of these methods:
- Fax: 909-753-0373
- Email: iummail@hatci.com (send as PDF/JPG/PNG scan file)
Pages to be sent:
1. Completed Vehicle Test Sheet .
2. GDS Screen Printout of the In Use Performance Report data.
3. Single page copy of the main (front page) of the Dealer Repair Order .
Attach Items 1 and 2 above to the Repair Order for claim record.
NOTE: Please confirm that the fax or email transmitted successfully. You must send fax or email to receive claim payment, as Hyundai must submit the data to CARB. Any data that is not received will be subject to claim charge back until it is submitted.

B. Vehicle Test Sheet and GDS "In Use Performance Report" Data to be completed for each vehicle

The next 3 pages consists of the following:

Blank Vehicle Test Sheet to be completed for each qualifying vehicle.
Examples of a completed Vehicle Test Sheet with the GDS Screen Printout of the In Use Performance Report data attached, as required per the included service procedure.

NOTE: Make multiple copies of this blank Vehicle Test Sheet page. You must complete this page and submit it by fax or email for each applicable vehicle along with a second page containing the "In Use Performance Reporting" data. Do not collect the Readiness Monitor Data, it is not needed.

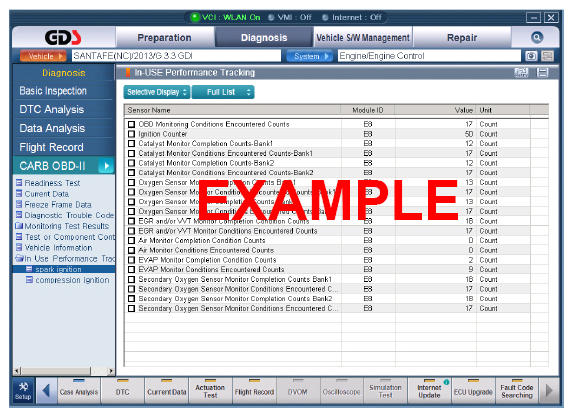

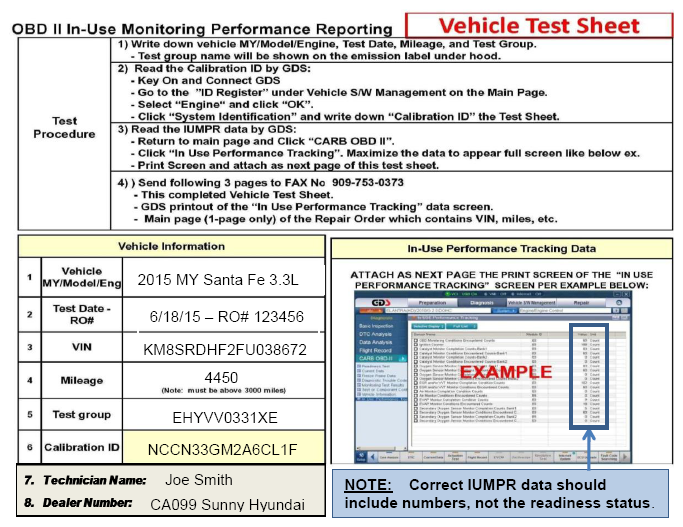

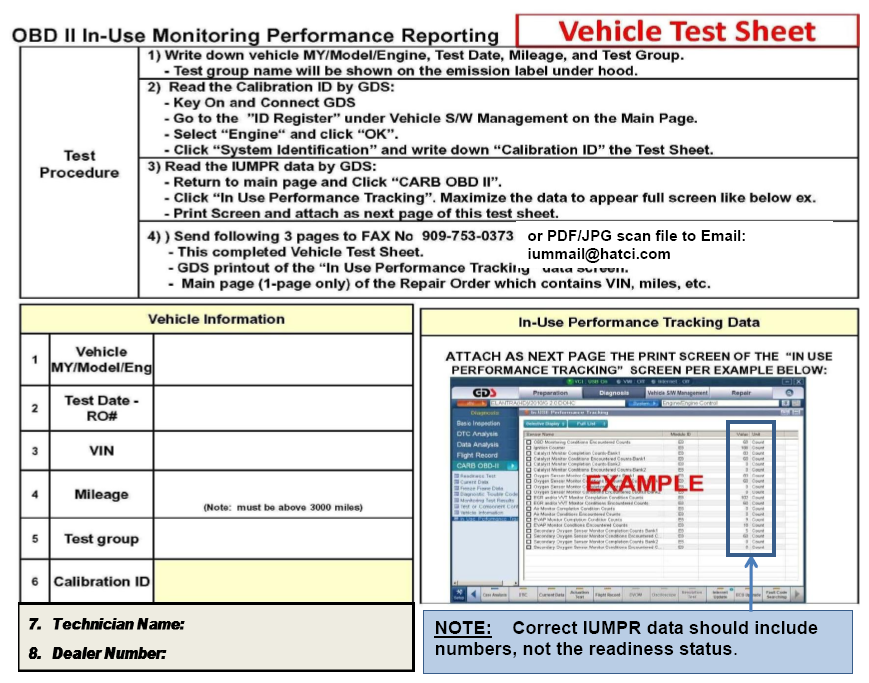

Example of a completed Vehicle Test Sheet with printout of the GDS "In Use Performance Report" data attached as page #2:

Example of Page 1 of fax to be sent:

Example of Page 2 of Fax to be sent:

NOTE: (Refer to last page for GDS Mobile data example).

DETAILED SERVICE PROCEDURE

Document the following information on the Vehicle Test Sheet (See page 4 of this bulletin):
- Model Year/Vehicle Name/Engine size
- Test Date (date you collected this data)
- RO Number (dealer repair order)
- VIN
- Mileage

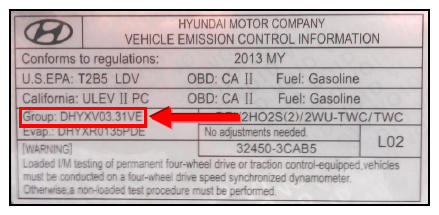

Open the engine compartment and locate the Underhood Emission Label . Write down the Group number for later entry into the form.

NOTE: Make sure that you have conducted the latest internet update of your GDS software to be able to read IUMPR values correctly.

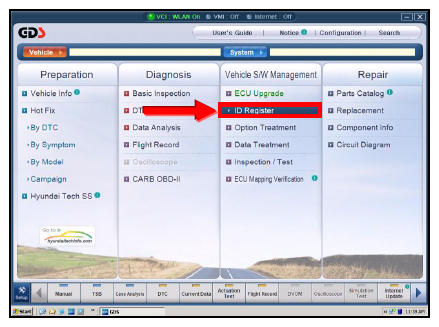

Connect the GDS to the vehicle with the ignition ON (engine does not need to be running) and select ID Register under Vehicle S/W Management tab:

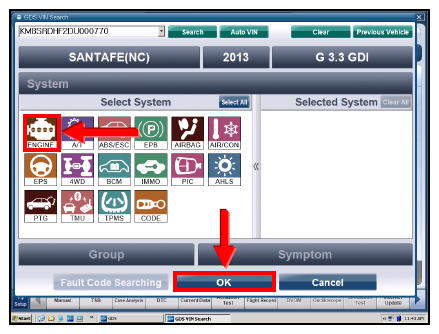

Select Engine and OK .

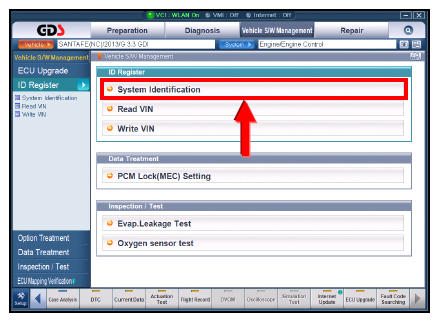

Select System Identification .

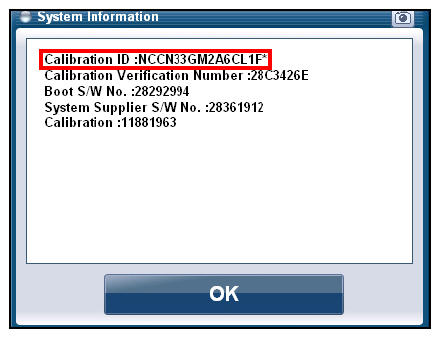

Locate the Calibration ID and enter on the Vehicle Test Sheet .

NOTE: For some models it may not display exactly as shown above. It may for example state "Sub Calibration Number " rather than Calibration ID, just be sure to use the item that includes the term "Calibration".

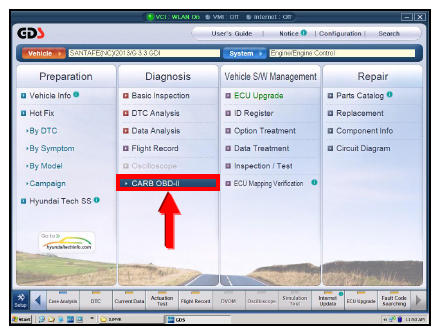

Go back to the main page of the GDS by clicking the GDS logo at the top left of the screen. Select CARB OBD-II under the Diagnosis tab.

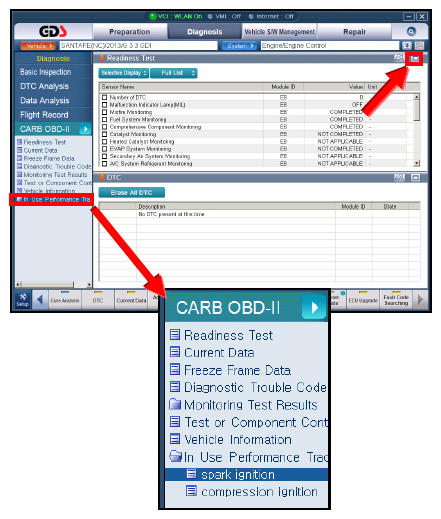

Select In Use Performance Tracking . In the sub-menu select Spark Ignition for gasoline engines.
Maximize the data display on the screen as shown to verify all data is displayed.

NOTE: If all values indicate "Not Supported" or "0" the vehicle does not qualify for data collection. It may have had a recent ECM update or battery replacement.

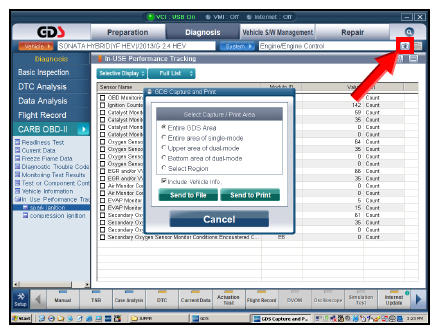

Print the GDS screen by selecting the Camera Icon in the upper right corner of the screen.
NOTE: Make sure you capture the entire screen. If only part of the list is displayed, first click the "Expand" button.

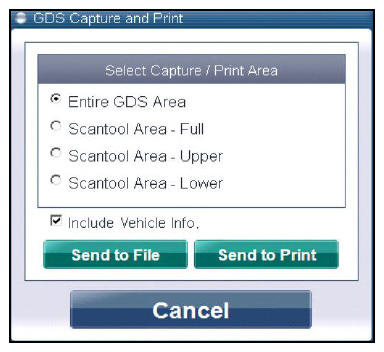

Select Entire GDS Area and click Send to Print .
Send the following 3 pages to fax number 909-753-0373 or PDF/JPG scan the file and email to iummail@hatci.com
1. Completed Vehicle Test Sheet .
2. GDS Screen Printout of the In Use Performance Report data.
3. Single page copy of the front page of the Dealer Repair Order which displays the VIN, miles, RO#, etc.
Attach items 1 and 2 listed above to the Repair Order as claims record. You may need to provide it as evidence later in event of charge back by Hyundai due to data not received.

GDS MOBILE INSTRUCTIONS

NOTE: Refer to www.hyundaitechinfo.com for printing instructions under: "GDS Mobile Info" / "GDS Mobile Tips".

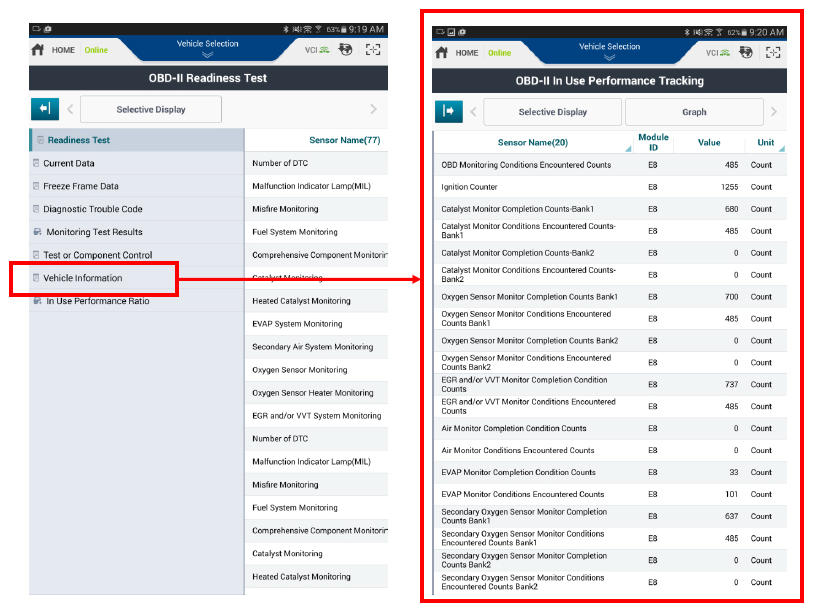

Printout of the OBD-II In Use Performance Tracking screen as shown below may be used as page-2 of the 3 total pages to be sent (along with the Vehicle Test Sheet and RO front page copy) by fax or PDF/JPG/PNG scanned file to the email provided.
