Components and Components Location: Components

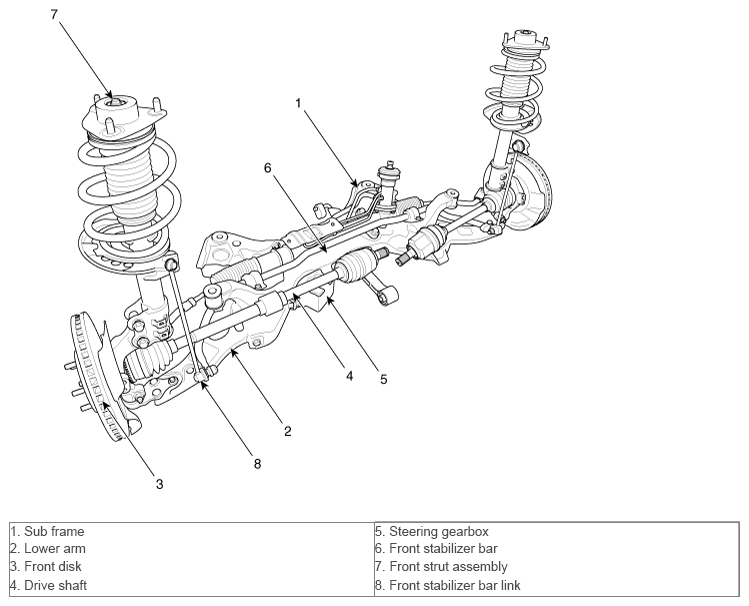

Fig 1: Front Suspension System Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
