Components And Components Location: Components

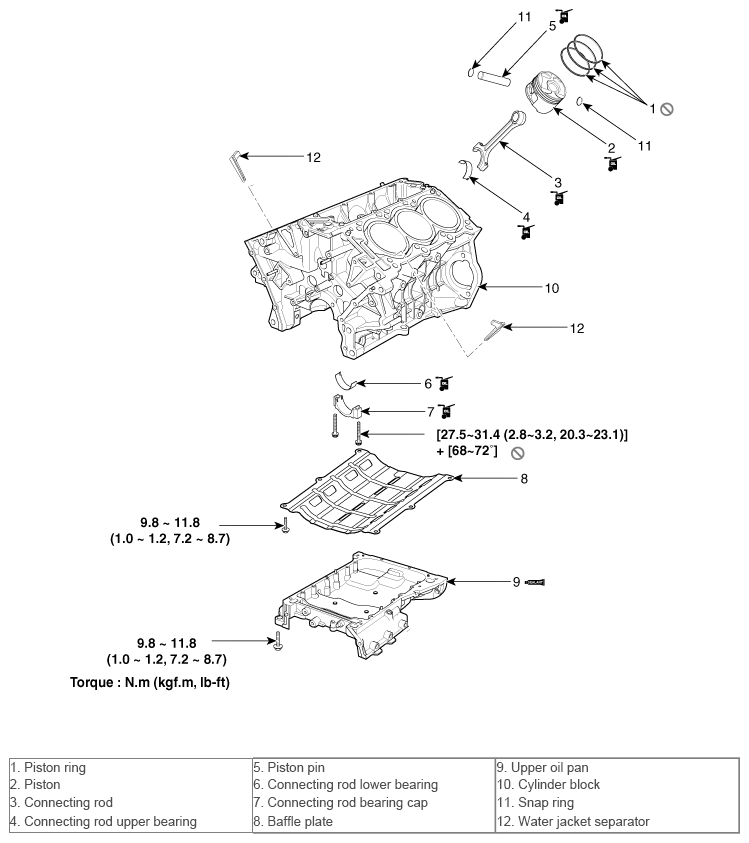

Fig 1: Cylinder Block Components With Torque Specifications (1 Of 2)
G10367032Courtesy of HYUNDAI MOTOR AMERICA

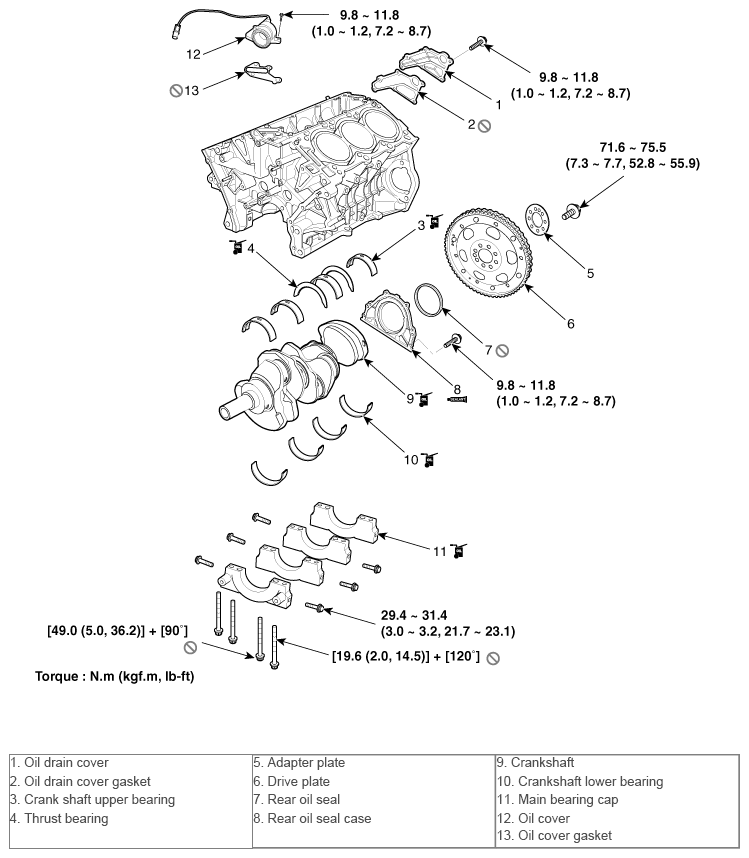

Fig 2: Cylinder Block Components With Torque Specifications (2 Of 2)
G10367033Courtesy of HYUNDAI MOTOR AMERICA
