Components And Components Location: Components

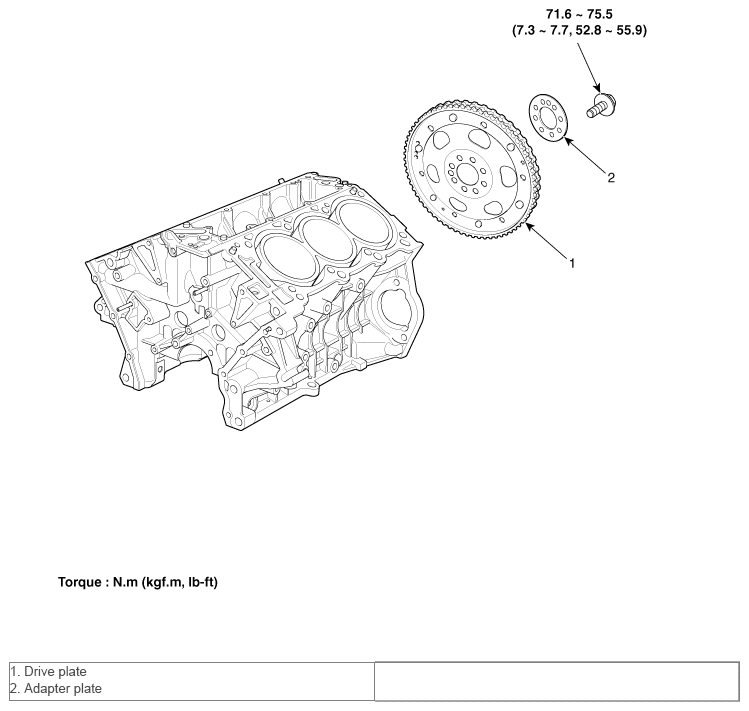

Fig 1: Drive Plate Components With Torque Specification
G10367027Courtesy of HYUNDAI MOTOR AMERICA
