Component and Component Location: Component

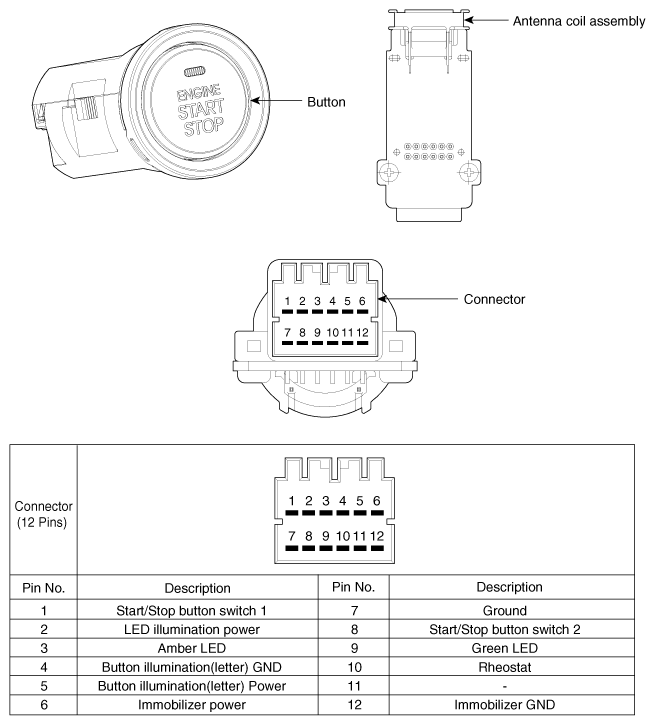

Fig 1: Start Stop Button, Antenna Coil Assembly & Connector End View
G10545980Courtesy of HYUNDAI MOTOR AMERICA
