Pin Arrangement

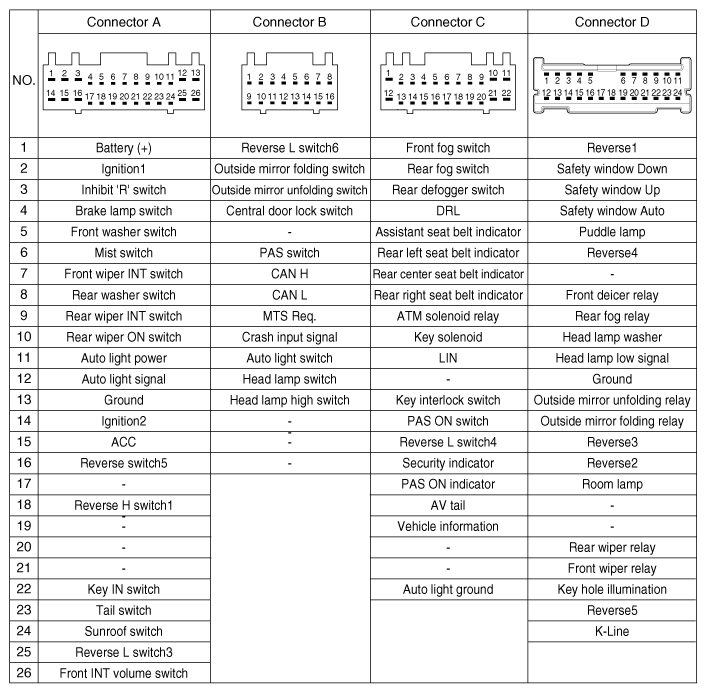

Fig 1: Body Control Module Connectors Terminals Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
