Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

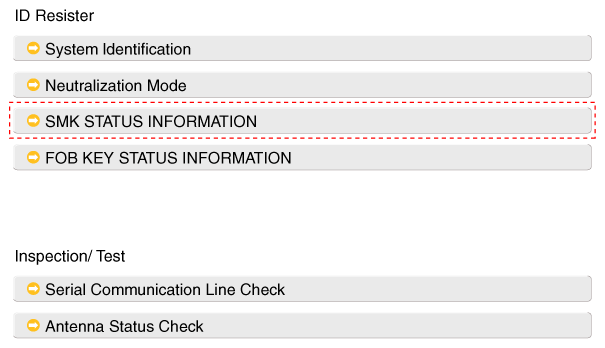

    Fig 1: Scantool Display - SMK Status Information
    G10530802Courtesy of HYUNDAI MOTOR AMERICA

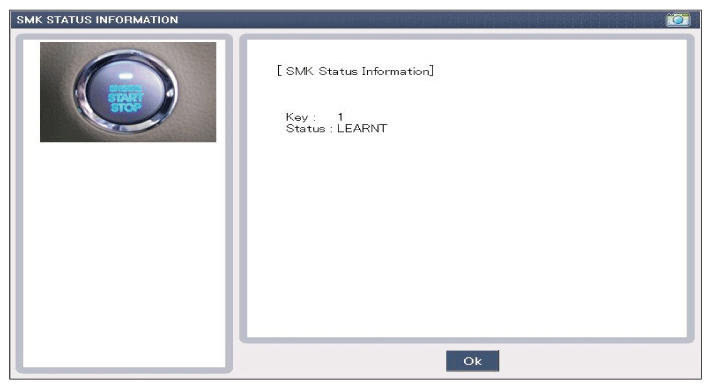

    Fig 2: Scantool Display - SMK Status Information (After IGN ON)
    G10530803Courtesy of HYUNDAI MOTOR AMERICA
