Components and Components Location: Components

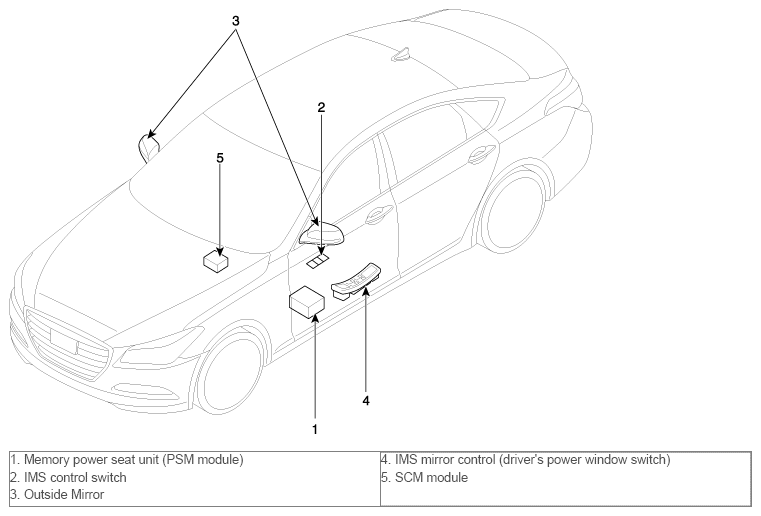

Fig 1: Integrated Memory System Components
G10454244Courtesy of HYUNDAI MOTOR AMERICA
