Engine Starting System: Troubleshooting

NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

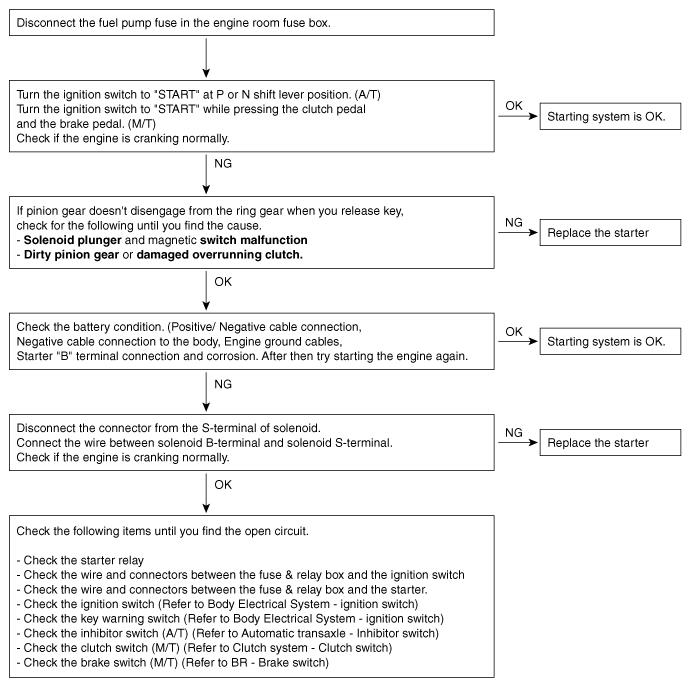

Fig 1: Starting System Troubleshooting Flow Chart
G10574727Courtesy of HYUNDAI MOTOR AMERICA
