Mode Change - Power Liftgate System

After replacing with a new power liftgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power liftgate mode change.
After connecting the GDS, select the "Power Liftgate Mode Change" procedure.

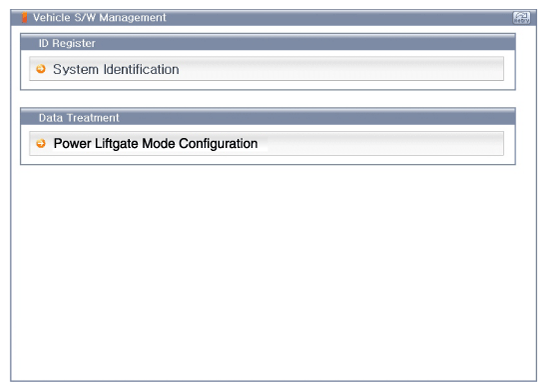

Fig 1: Display - Power Liftgate Mode Configuration Screen
Courtesy of HYUNDAI MOTOR AMERICA
Perform the liftgate mode change procedure according to displayed messages on GDS.

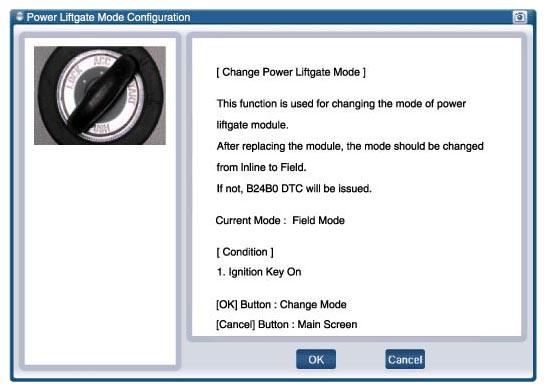

Fig 2: Display - Change Power Liftgate Mode Screen
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- If power liftgate system is operated with factory mode, it makes the abnormal warning sound.
